10 Axle 100 Ton Extendable Lowbed Trailer

The HUAYUE 10 axle extendable lowbed trailer is a specialized heavy-haul transport vehicle engineered for moving oversized, over-length, and heavyweight industrial equipment. Designed to meet the stringent requirements of heavy logistics, this trailer combines a telescopic deck structure with a high-capacity multi-axle chassis to transport payloads up to 100 tons safely.

1. Core Technical Specifications

To evaluate the equipment's suitability for specific project requirements, please refer to the primary technical parameters below:

• Maximum Payload Capacity: 100 Tons

• Overall Length (Fully Extended): 19 Meters

• Axle Configuration: 10 Axles (Multi-axle layout for optimized weight distribution)

• Suspension System: Heavy-duty Air Suspension

• Main Beam Material: High-yield strength steel

2. Key Engineering Features

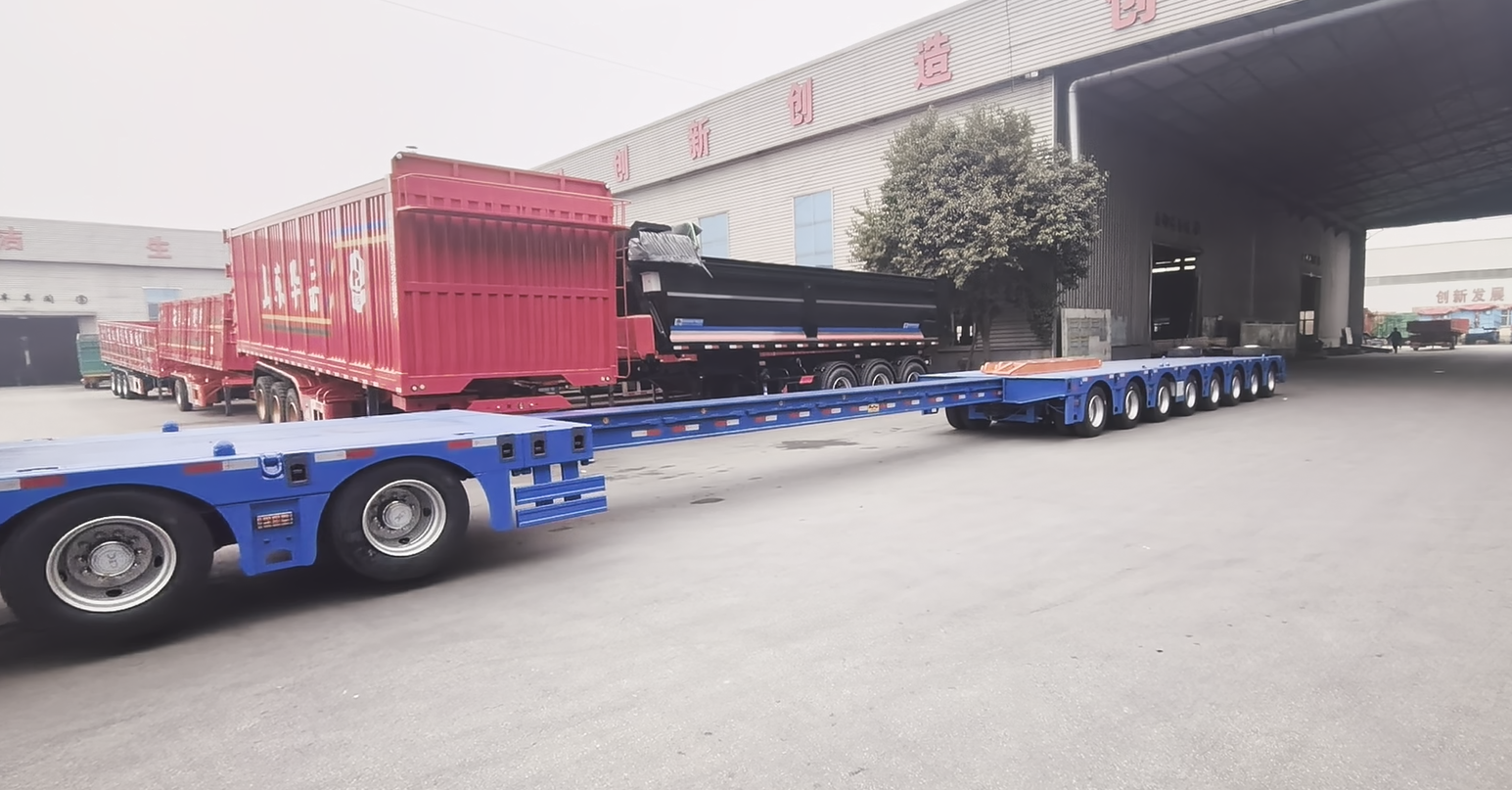

Telescopic Deck Design for Over-Length Cargo

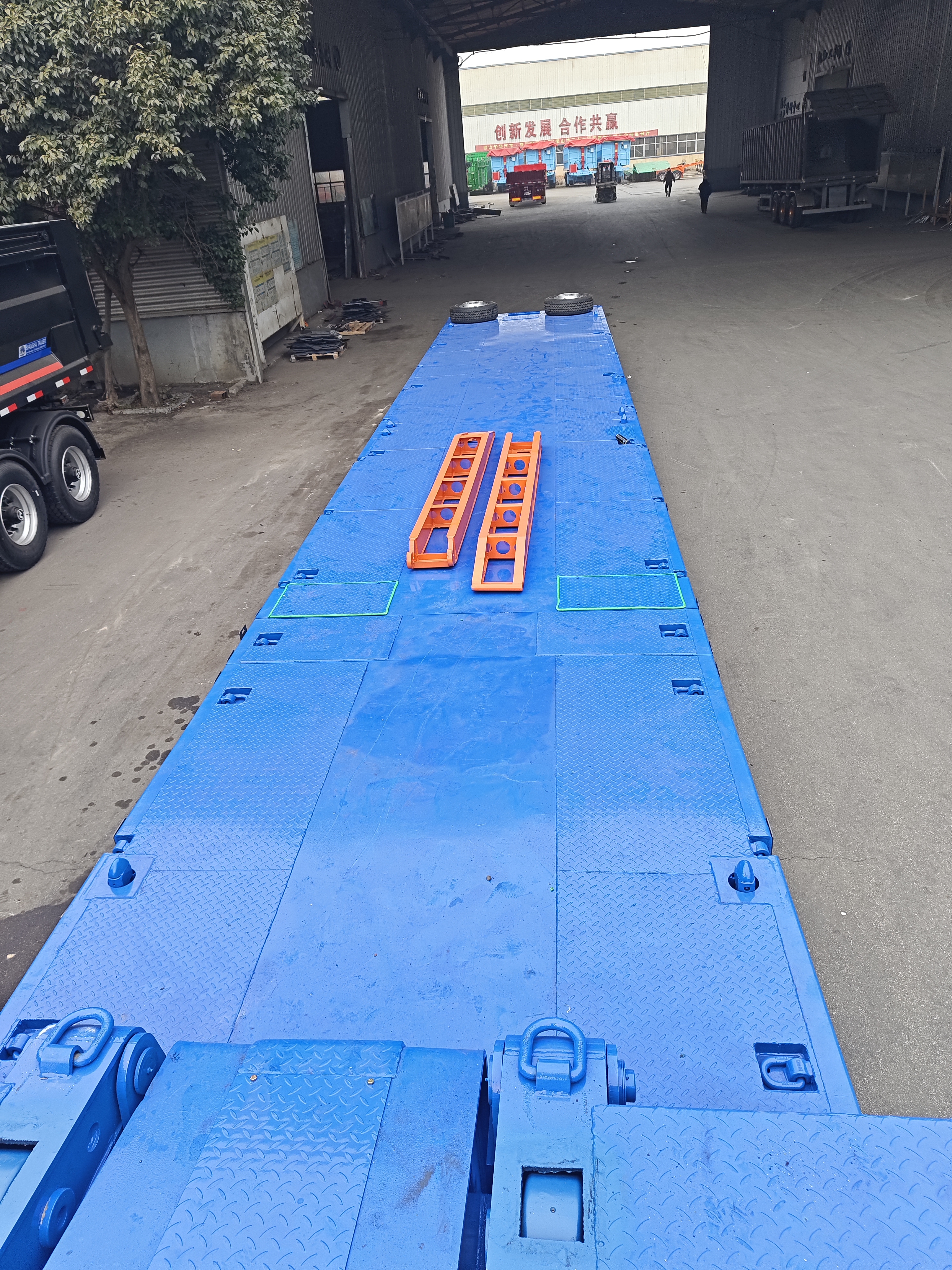

The defining feature of this lowbed trailer is its extendable main deck. Through a telescopic mechanism, the trailer can achieve a maximum overall length of 19 meters. This adjustable length allows logistics operators to configure the trailer according to the specific dimensions of the cargo, providing adequate bottom support for ultra-long items and eliminating the structural risks associated with excessive rear overhang.

10-Axle Configuration and Weight Distribution

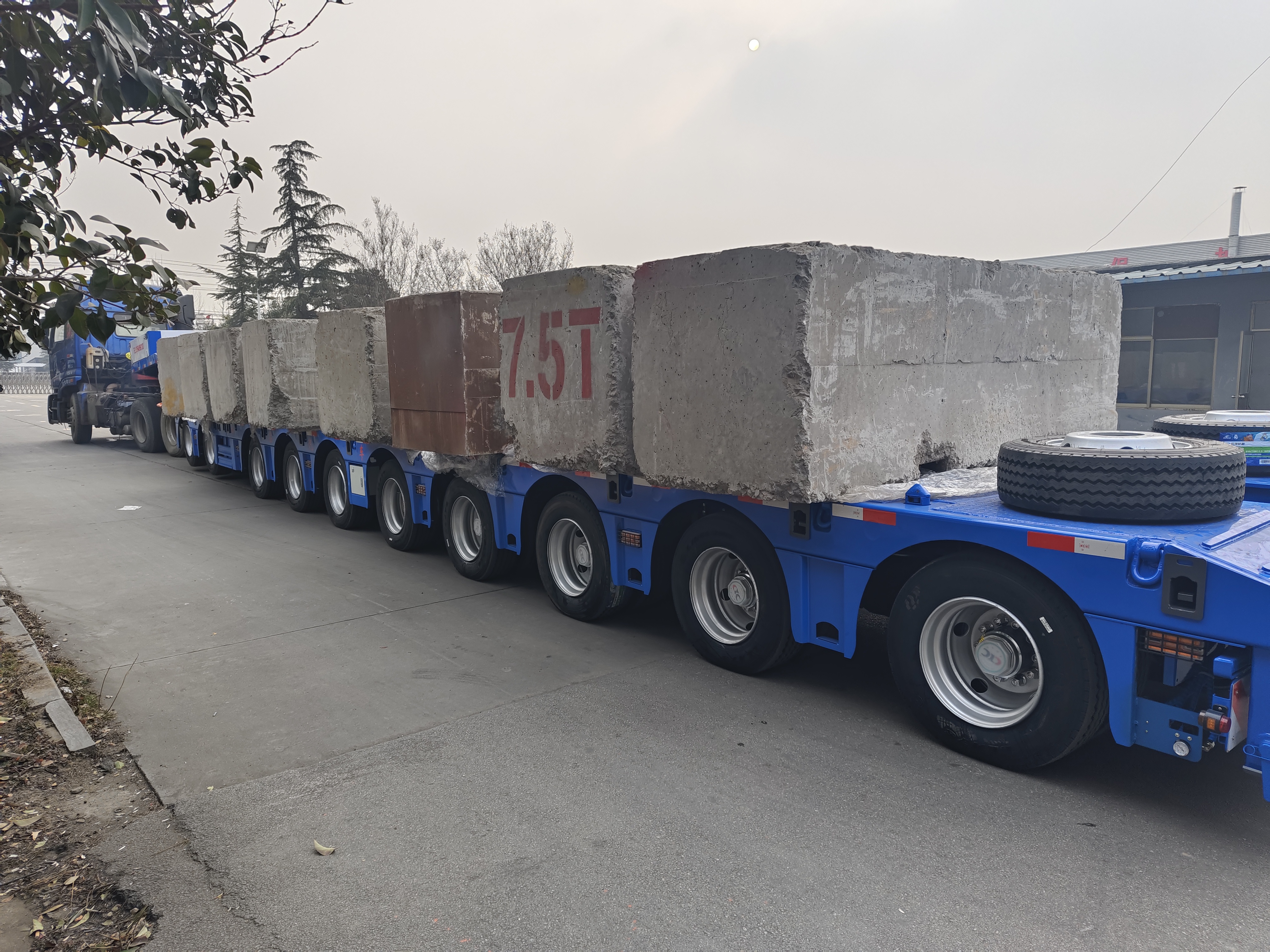

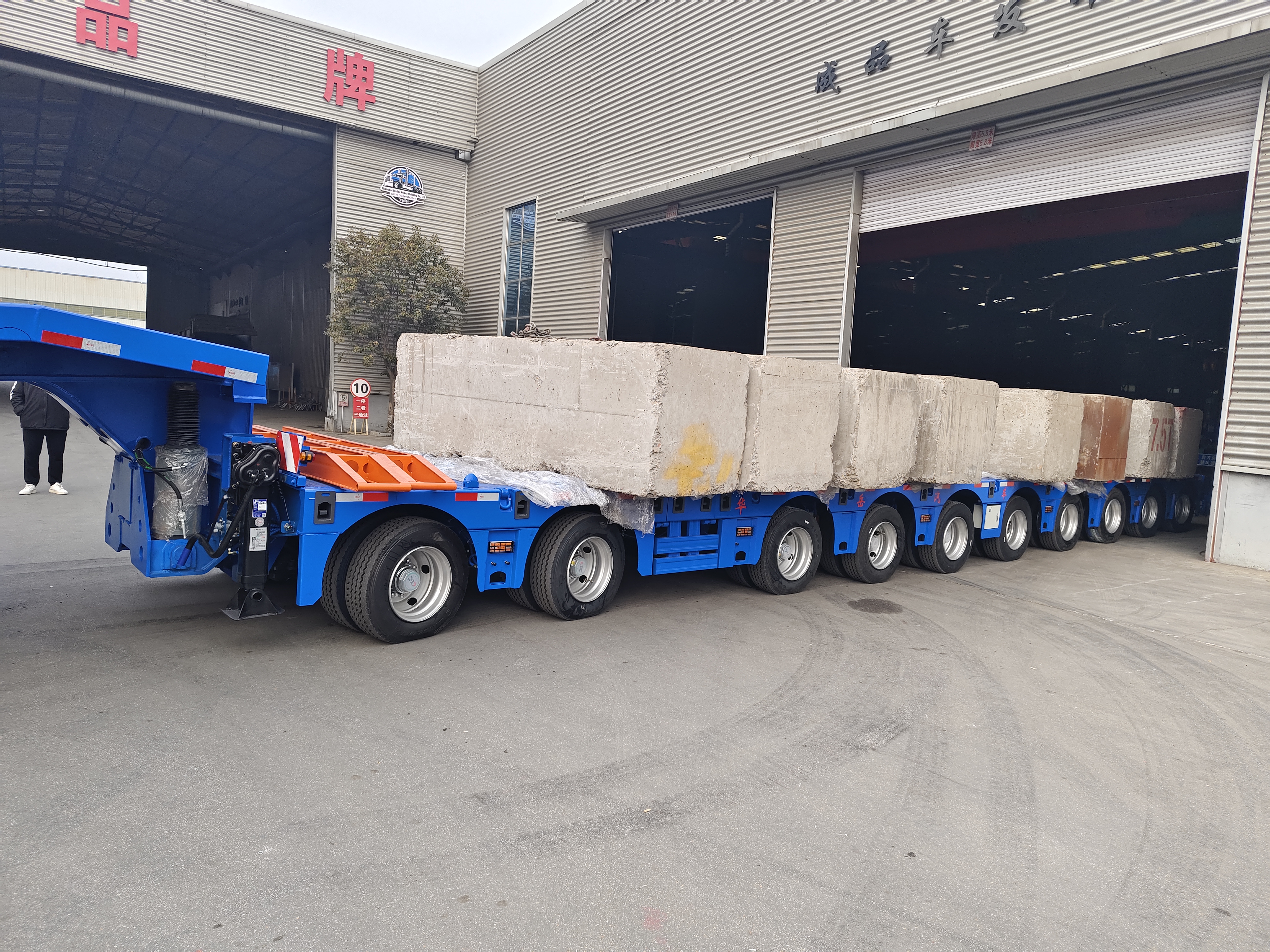

Transporting 100-ton payloads requires precise weight management to protect both the trailer frame and the road infrastructure. The 10-axle layout effectively spreads the gross vehicle weight across 40 tires. This even distribution minimizes localized point loads, ensuring structural stability and helping operators comply with regional highway axle weight limits.

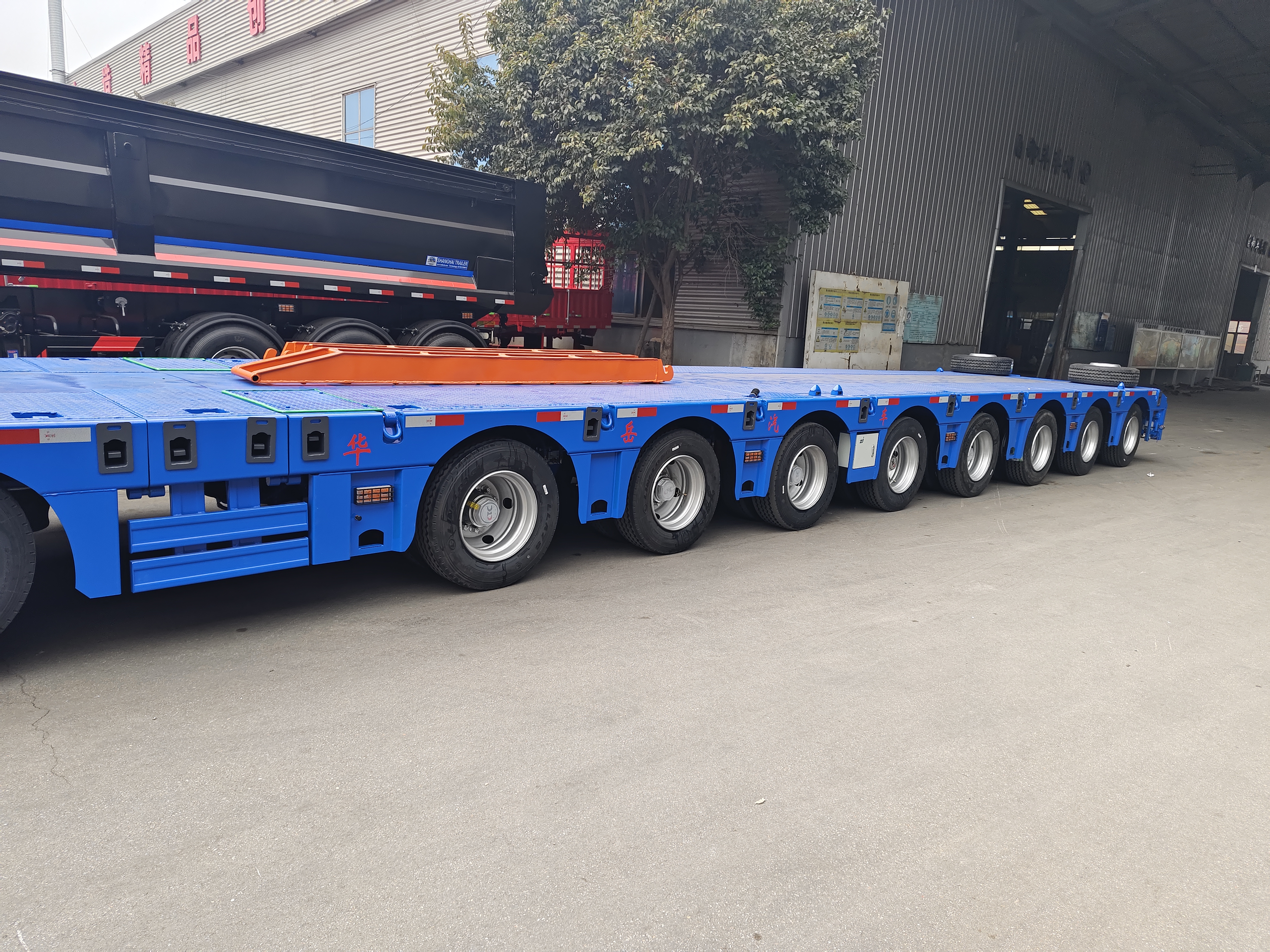

Air Suspension System

Instead of traditional rigid mechanical suspensions, this trailer is equipped with a pneumatic air suspension system. The primary function of the air suspension is to absorb road vibrations during transit, which is critical when transporting sensitive or high-value industrial assets. Furthermore, it provides the operator with the ability to adjust the deck height, facilitating safe passage under low-clearance bridges or over uneven terrain.

3. Primary Applications

Based on its 19-meter length and 100-ton capacity, the 10 axle extendable lowbed trailer is typically deployed in the following sectors:

• Wind Energy Construction: Transporting wind turbine tower sections and generator nacelles.

• Infrastructure Projects: Moving prefabricated concrete bridge girders and heavy steel structures.

• Heavy Machinery: Relocating large-scale mining equipment, transformers, and industrial presses.

Request a Technical Consultation

For detailed engineering drawings, customization options, or a direct factory quote for the 10 axle extendable lowbed trailer, please contact our manufacturing team.
