HUAYUE 2-Axle Detachable Gooseneck Lowbed Trailer (RGN)

Engineering Overview

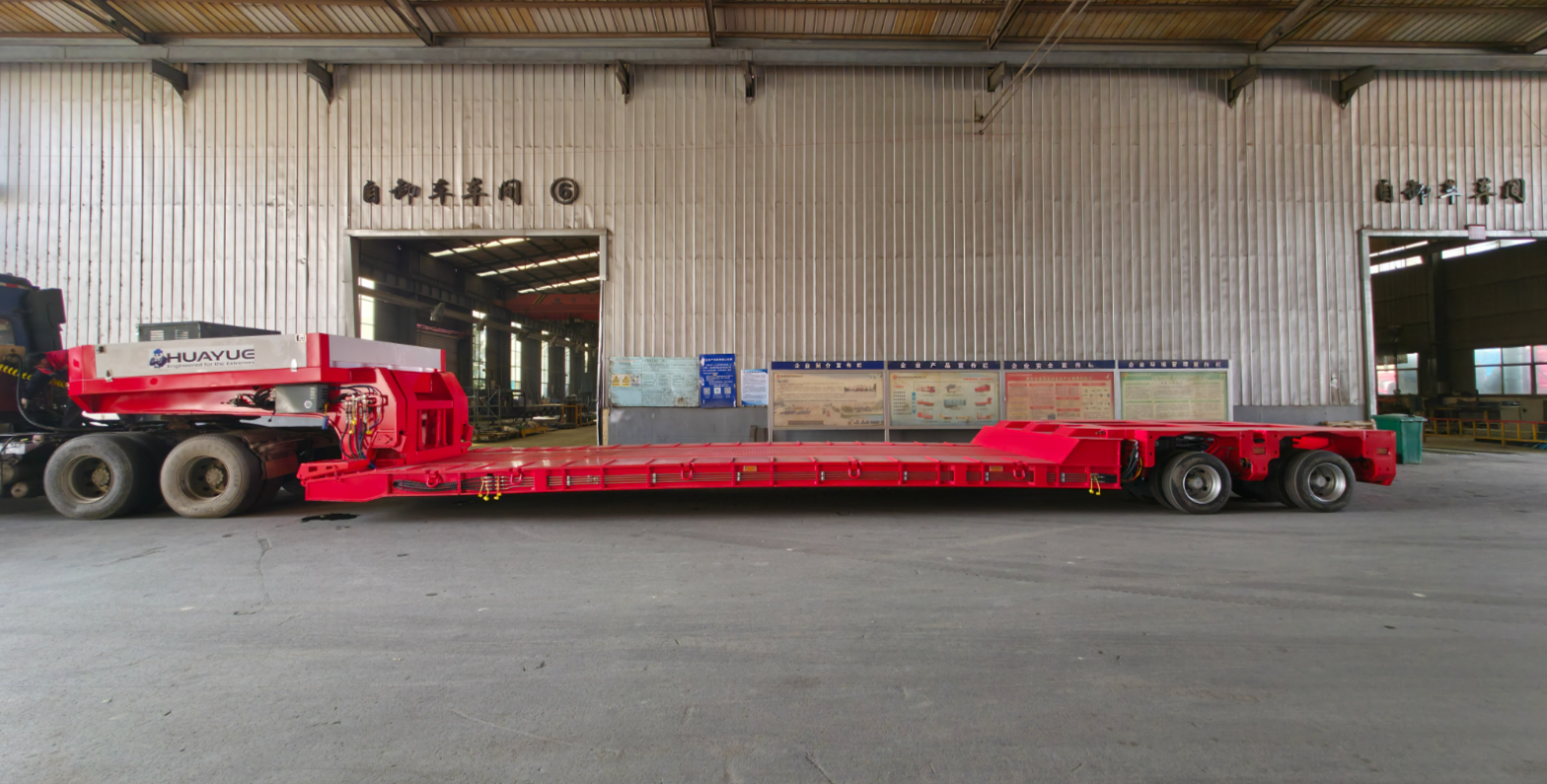

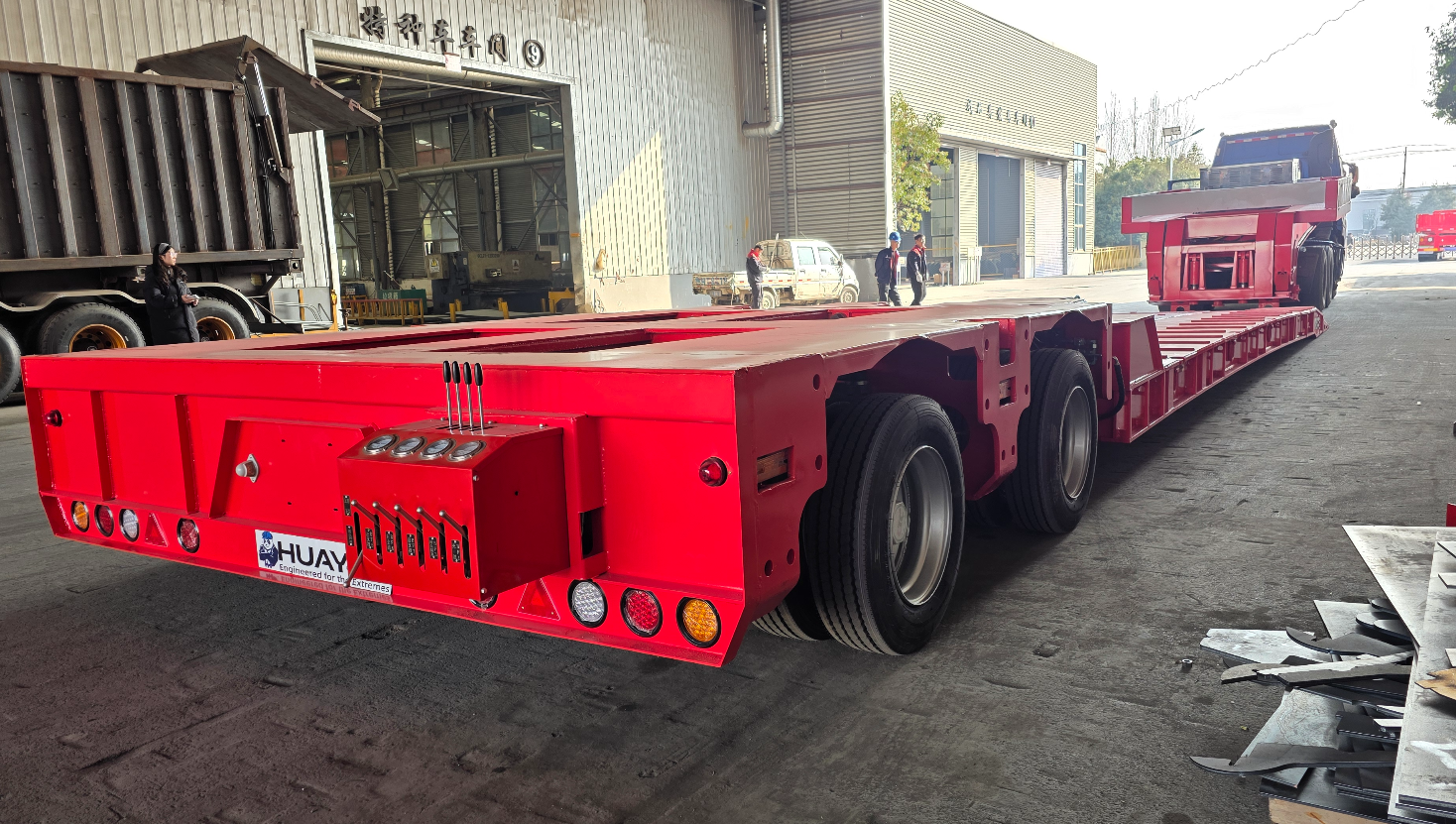

The HUAYUE 2-Axle Detachable Gooseneck Trailer (RGN Lowboy) defies standard heavy haulage limits. Engineered specifically for concentrated heavy loads, this compact yet immensely powerful trailer can safely transport up to 60 Tons on its 7-meter working deck.

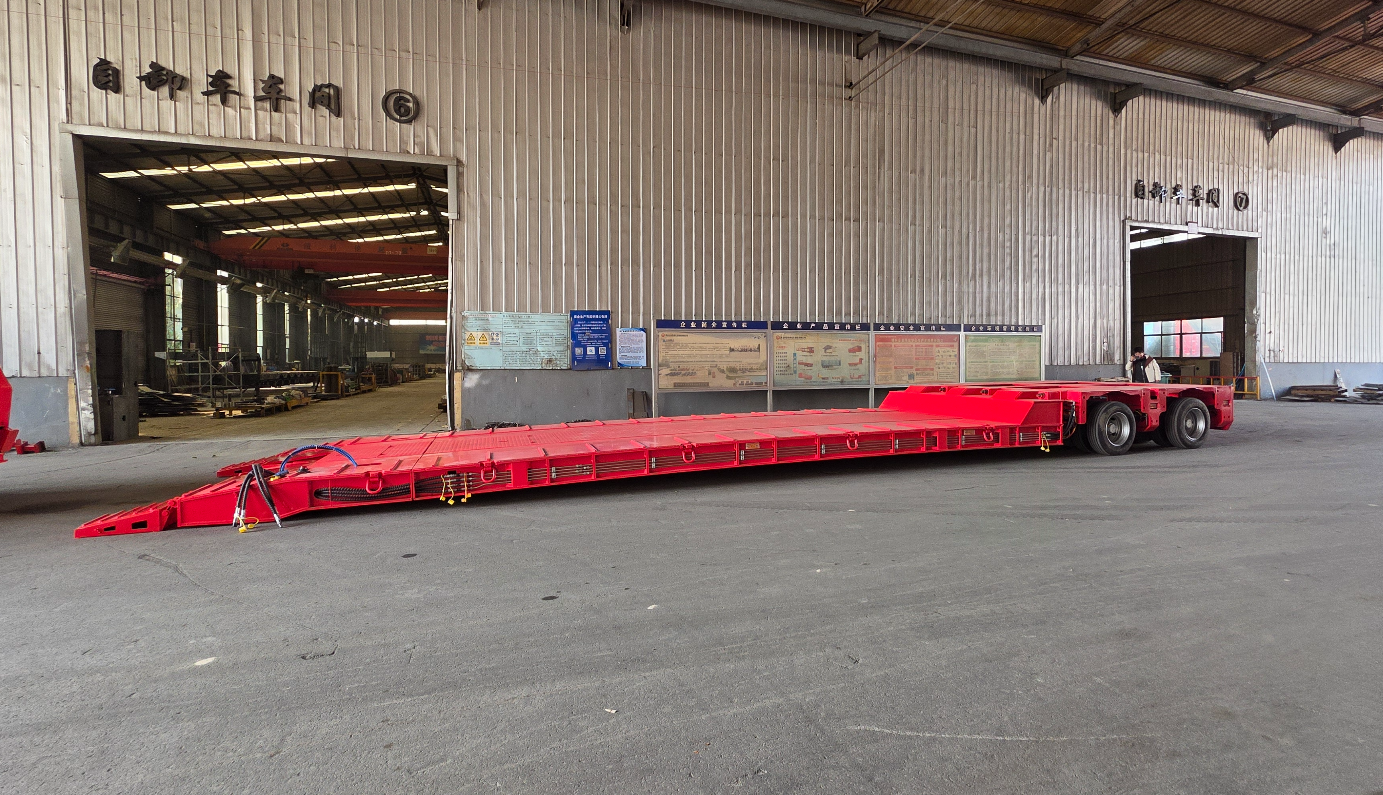

By completely removing the hydraulic gooseneck, it utilizes a Front Loading mechanism, creating an extremely safe, low-angle ramp for heavy construction machinery. To handle the massive 60-ton concentrated stress on just two axles, HUAYUE exclusively utilizes Q345B and T700 high-yield-strength structural steel. This robust material selection effectively resists metal fatigue and plastic deformation during rigorous transport.

Technical Specifications (Structured Data)

Core Engineering Solutions

1. Pre-Cambered Main Beam Design

To accommodate the massive 60-ton load on a compact 7-meter deck, the HUAYUE engineering team pre-cambers the main beams (an intentional upward curve during manufacturing). When the heavy excavator is loaded, the high-yield steel beams flatten out perfectly, preventing dangerous sagging and ensuring optimal ground clearance during transit.

2. Width Extension for Oversized Crawlers

Standard excavators often exceed normal trailer widths. This RGN trailer features a 3,000mm wide deck that can be rapidly extended to 3,500mm using side extension brackets and heavy-duty wooden boards. Front and rear warning signs are equipped to ensure full compliance with oversized transport regulations.

Frequently Asked Questions (FAQ)

Q: How can a 2-axle lowboy trailer safely carry 60 tons?

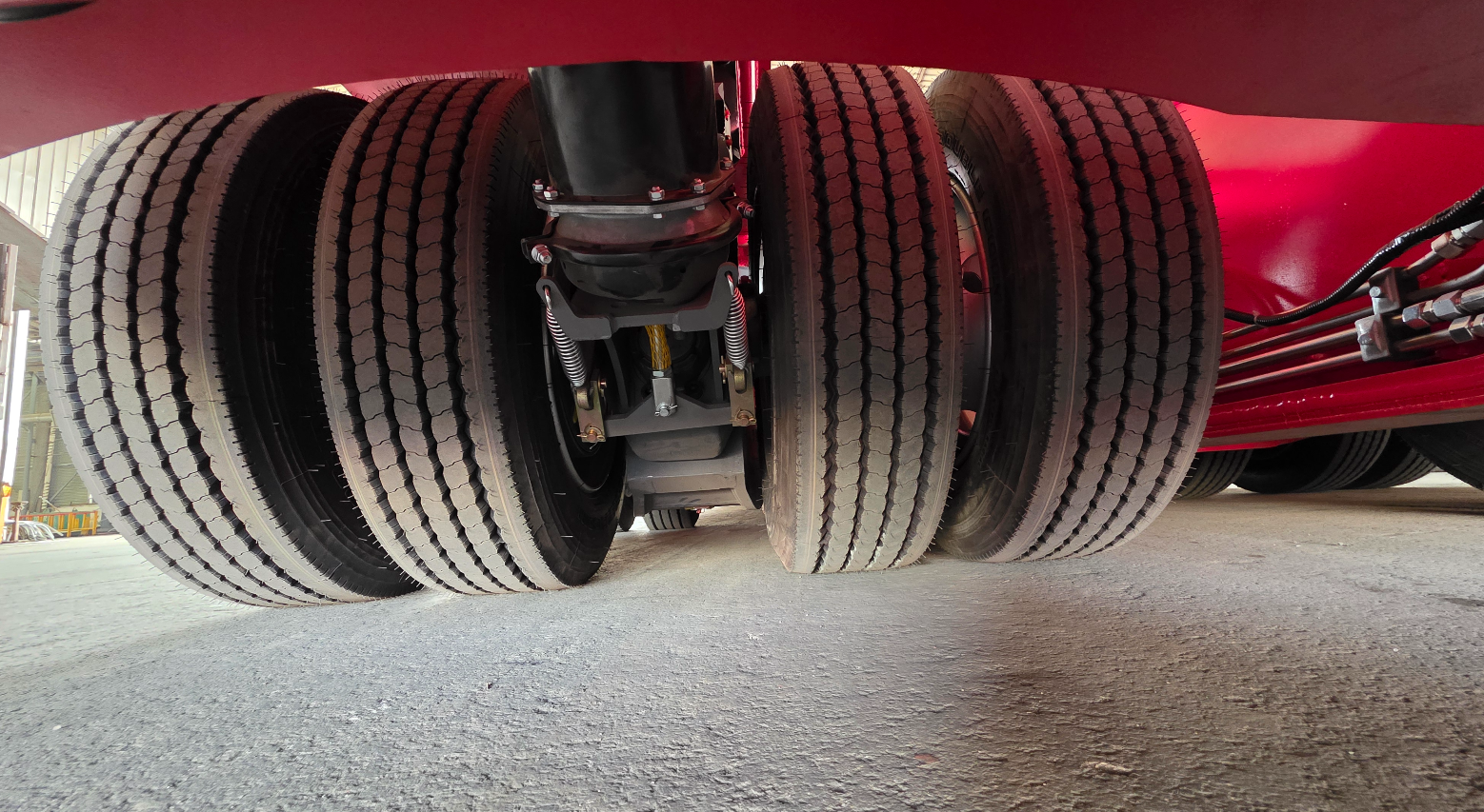

A: Standard 2-axle trailers usually carry 30-40 tons. However, the HUAYUE 2-Axle RGN is built with ultra-thick Q345B/T700 high-yield steel and features a pre-cambered chassis. Paired with a reinforced heavy-duty mechanical suspension, it concentrates the structural rigidity to safely manage a 60-ton payload over its 7-meter deck without yielding.

Q: Is the hydraulic power station included on the trailer?

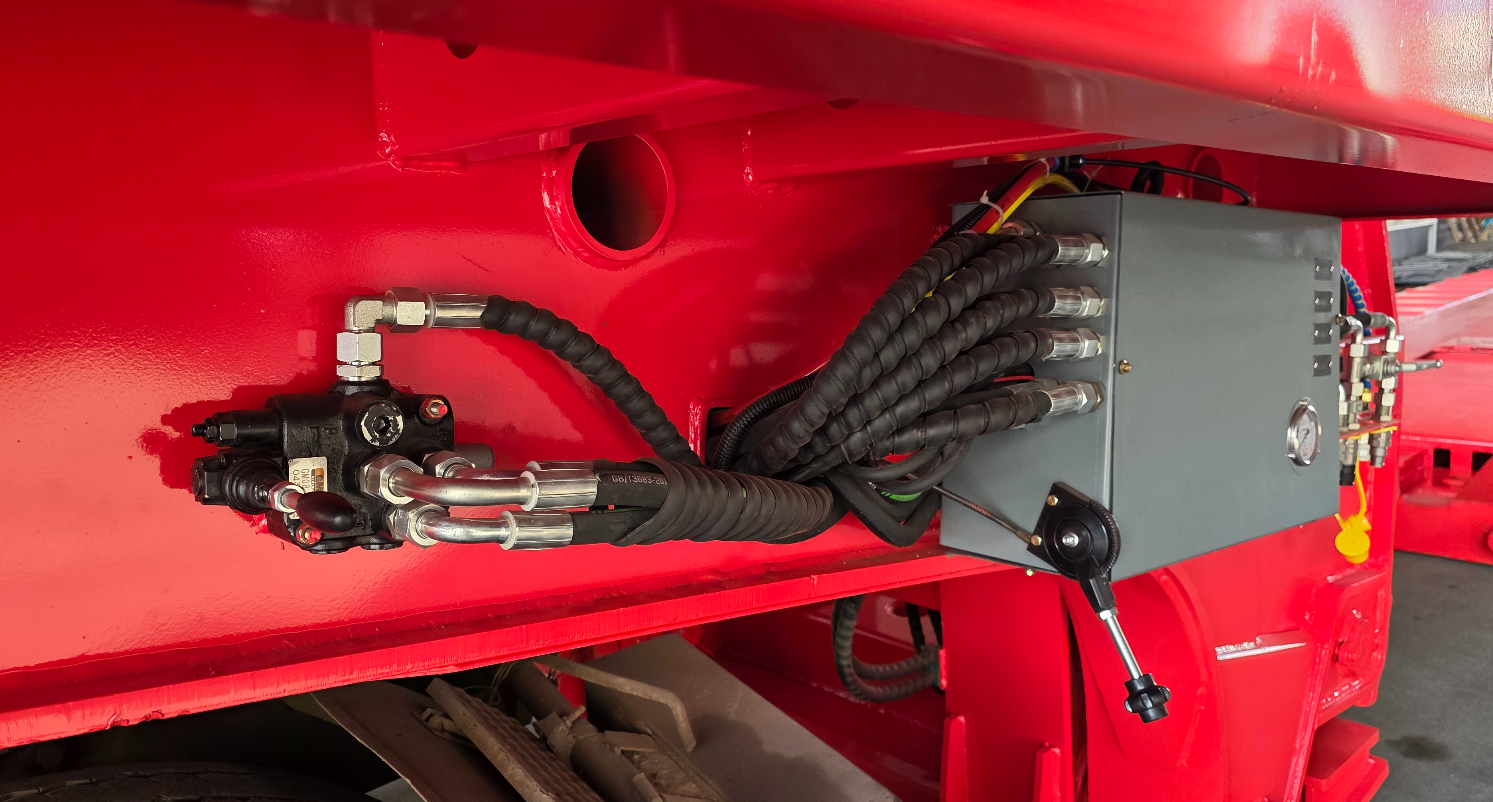

A: Yes. The trailer is equipped with its own independent hydraulic power station (diesel engine) mounted on the gooseneck. This means the gooseneck can be detached and reattached effortlessly without requiring a specific PTO (Power Take-Off) setup from the towing truck.

--------------------------------------------------

HUAYUE Trailer

—— Manufacturing Hardcore Equipment, Delivering Global Trust From custom R&D to cross-border after-sales support, HUAYUE provides global logistics companies with more than just semi-trailers—we deliver the absolute confidence to overcome any unexpected challenge.
