HUAYUE 8-Axle Air Suspension Two-Stage Extendable Lowbed Trailer

In transnational heavy infrastructure and wind power projects, fleets frequently face the challenge of transporting 120-ton crawler excavators or ultra-long steel components exceeding 30 meters in length. When conventional fixed trailers confront such extreme loads, they risk catastrophic structural failures and incur astronomical fines due to immense ground pressure.

To completely resolve the challenges of "legal road rights," "extreme dimensions," and "loading safety," the HUAYUE engineering team has developed the 8-Axle Air Suspension Two-Stage Extendable Lowbed Trailer.

Core Technical Specifications

HUAYUE's Engineering Advantages

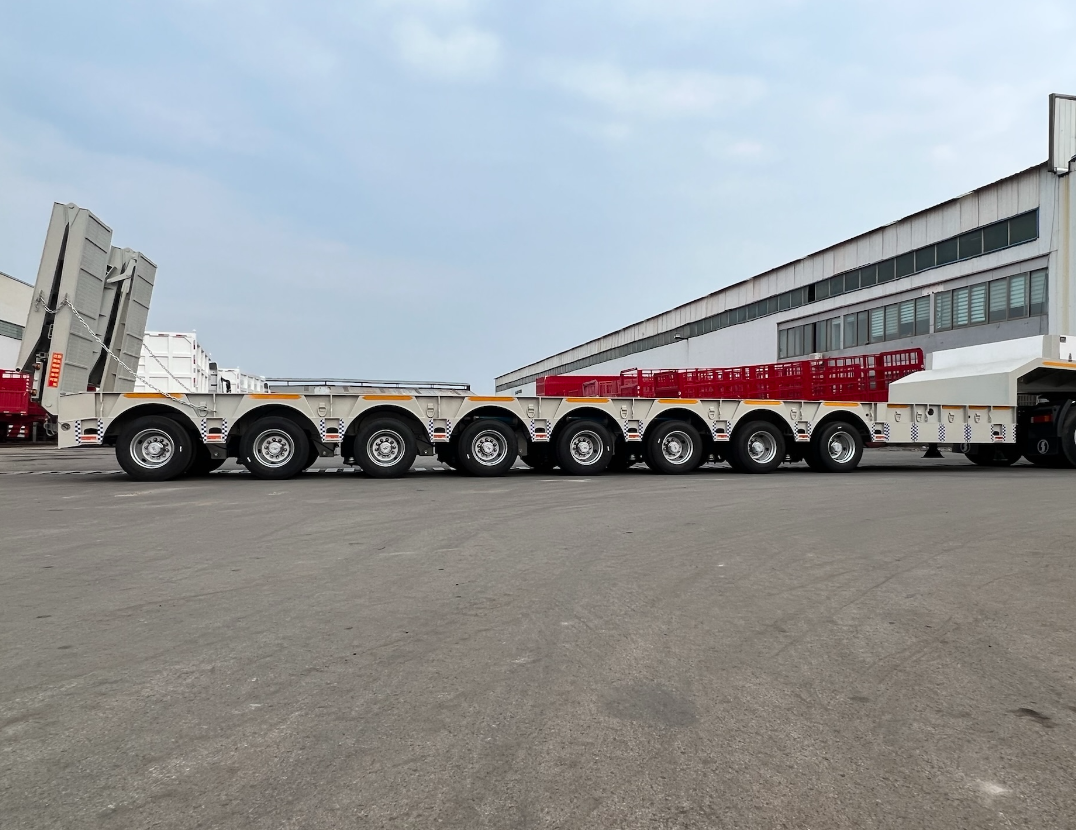

1. 8-Axle Matrix: The Ultimate Solution for Dispersing Ground Pressure

When trailer payloads breach the 120-ton threshold, this HUAYUE chassis densely aligns 8 air suspension axles. By maximizing the total tire contact area, massive concentrated weights are perfectly distributed across a vast expanse of the road. This design drastically reduces individual Axle Loads, protecting bridges and unpaved roads, and ensuring your fleet effortlessly passes stringent international weigh-station regulations.

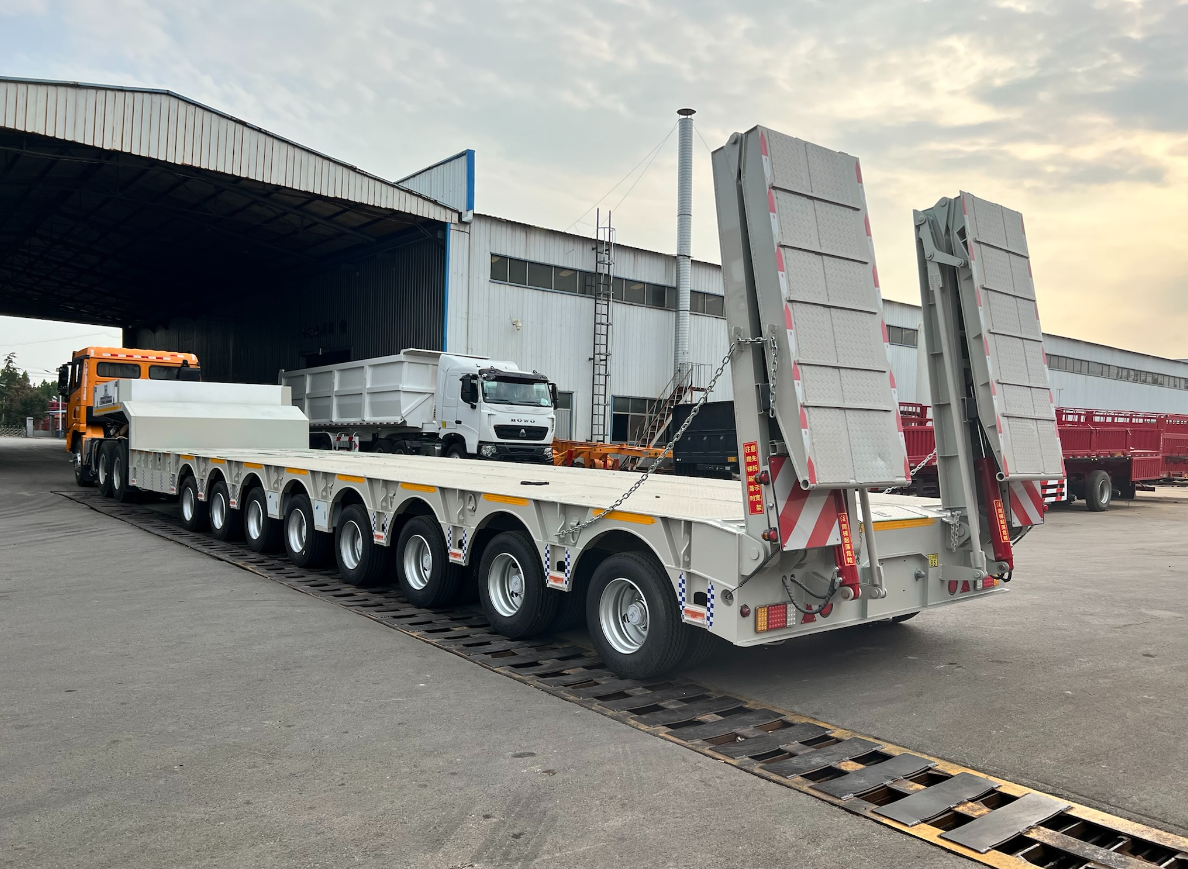

2. 100-Ton Double-Folding Ramps: Eliminating Loading Blind Spots

The margin for error when loading 100-ton tracked machinery is zero. We have configured the rear with a 100-ton class double-section hydraulic ramp. Compared to traditional single-section ramps, the double-folding design unfolds to create a significantly longer physical run-up distance, which mathematically reduces the climbing angle to an absolute minimum, eradicating the risk of heavy excavators slipping or bottoming out.

Frequently Asked Questions

Q: Will an 8-axle chassis extending to 34 meters cause severe tire dragging during tight turns?

A: Absolutely not. The entire chassis runs on air suspension. Crucially, the 5th, 6th, 7th, and 8th axles feature Follow-up Steering, which automatically pivots in response to road friction during cornering, perfectly eliminating the tire-scrubbing phenomenon. Furthermore, the 1st and 2nd axles are equipped with independent airbag lift functions, allowing operators to hoist them off the ground during unladen trips to drastically cut rolling resistance.

Q: What is the engineering purpose of using 245/70R17.5 smaller-diameter tires?

A: By utilizing these low-profile heavy-duty tires, HUAYUE successfully compresses the center of gravity to its absolute limit. A lower deck height provides superior anti-rollover stability and grants crucial overhead clearance, allowing you to legally transport taller oversized equipment under strict urban overpasses.

--------------------------------------------------

HUAYUE Trailer

—— Manufacturing Hardcore Equipment, Delivering Global Trust From custom R&D to cross-border after-sales support, HUAYUE provides global logistics companies with more than just semi-trailers—we deliver the absolute confidence to overcome any unexpected challenge.
