HUAYUE 6-Axle Extendable Heavy-Duty Lowbed Trailer

Engineering Overview

In modern heavy-haul logistics, fleets require versatile assets capable of transporting 60-ton crawler excavators, accommodating ultra-long steel structures, and occasionally hauling intermodal marine containers. The HUAYUE 6-axle extendable heavy-duty lowbed trailer is engineered as the ultimate "Swiss Army Knife" for specialized transport.

Built within a standard 2.55-meter road-legal width framework, this trailer integrates a 7.3-meter single-beam telescopic system alongside forward-thinking dual-end air suspension follow-up steering and lifting technologies. Paired with an advanced industrial wireless remote control system, it allows a single operator to execute complex heavy-haul dispatches safely and efficiently, maximizing fleet utilization.

Technical Specifications

Core Engineering Solutions

1. Optimized Single Central Box-Beam for 2.55m Width Compliance

Operating within a strict 2.55-meter standard trailer width means the internal chassis clearance must accommodate complex air suspension brackets and steering linkage bars. To achieve a massive 7.3-meter telescopic extension without mechanical interference, HUAYUE utilized a high-yield Single Central Box-Beam design. Forged from premium structural steel, this central spine eliminates component friction inside the chassis while providing a solid 60-ton load capacity on the working deck, resisting vertical deflection under concentrated machinery weight.

2. Smart Dual-End Follow-Up Steering & Air Lift Configuration (TCO Reduction)

Running a 6-axle trailer with 24 tires without smart axle management leads to immense tire friction and fuel waste during empty returns or tight cornering. HUAYUE addresses this by integrating self-tracking steering and pneumatic lift capabilities onto the 1st, 5th, and 6th axles.

• Unladen Fuel Economy: When unladen, the operator can raise these 3 axles off the ground via a single switch, instantly reducing rolling resistance by 50% and slashing tire wear.

• Tight Radius Maneuvering: When carrying ultra-long loads through curves, the responsive follow-up steering axles automatically pivot based on lateral road forces. This dramatically shortens the turning radius of the 22.25m extended platform and completely eliminates tire scrubbing caused by lateral dragging.

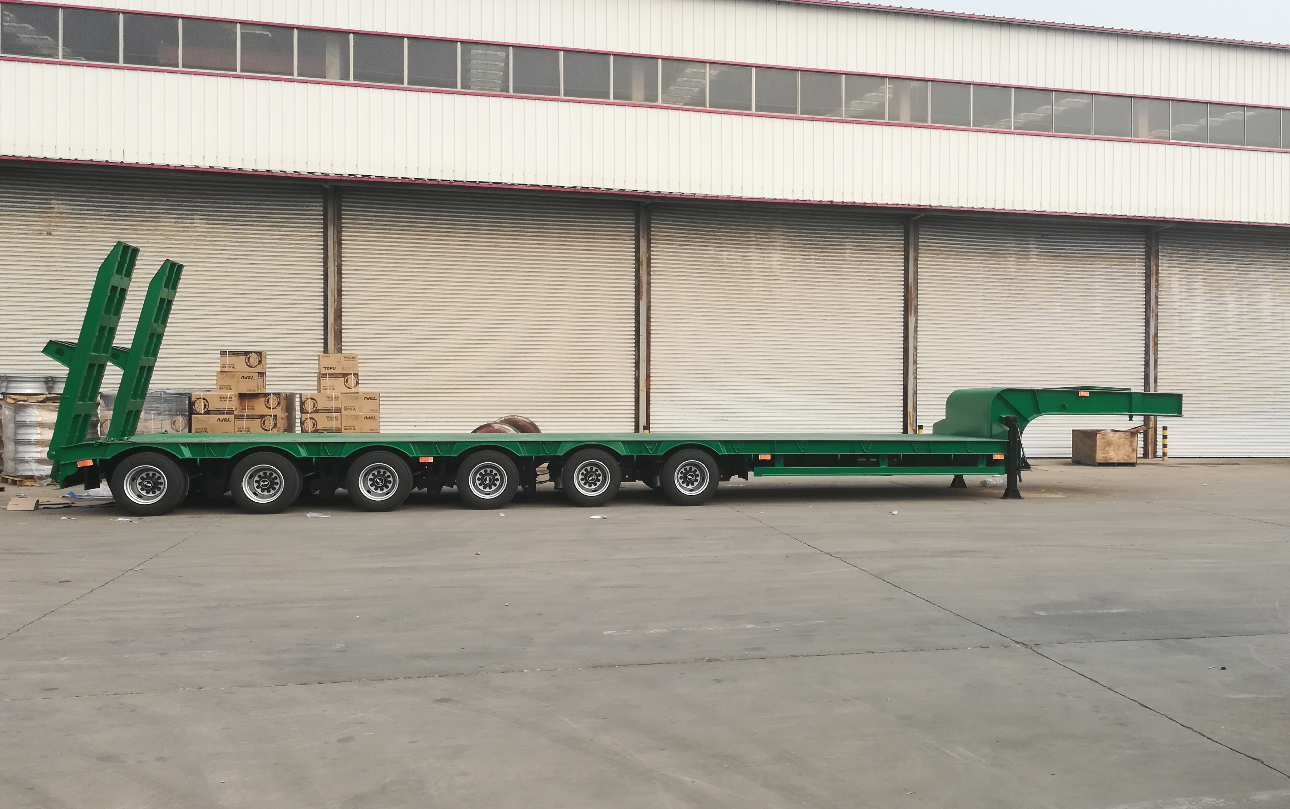

3. Premium Sa 2.5 Shot Blasting & Polyurethane Protective Paint

Heavy-duty trailers frequently operate in harsh, muddy construction sites or high-salinity coastal ports where structural rust is a constant threat. To ensure long-term durability, the entire high-strength steel chassis undergoes an institutionalized Sa 2.5 grade automatic shot blasting treatment prior to coating. This process completely pulverizes mill scale, rust, and impurities, creating an optimal microscopic surface profile for paint adhesion. The trailer is then sealed with a premium coating system consisting of an epoxy zinc-rich primer and an advanced aliphatic polyurethane topcoat. This industrial-grade shield provides excellent resistance against gravel impacts, extreme UV fading, and moisture oxidation, ensuring the steel frame remains rust-free throughout years of service.

Frequently Asked Questions

Q: What operational advantages does the "Full Wireless Remote Control" system provide?

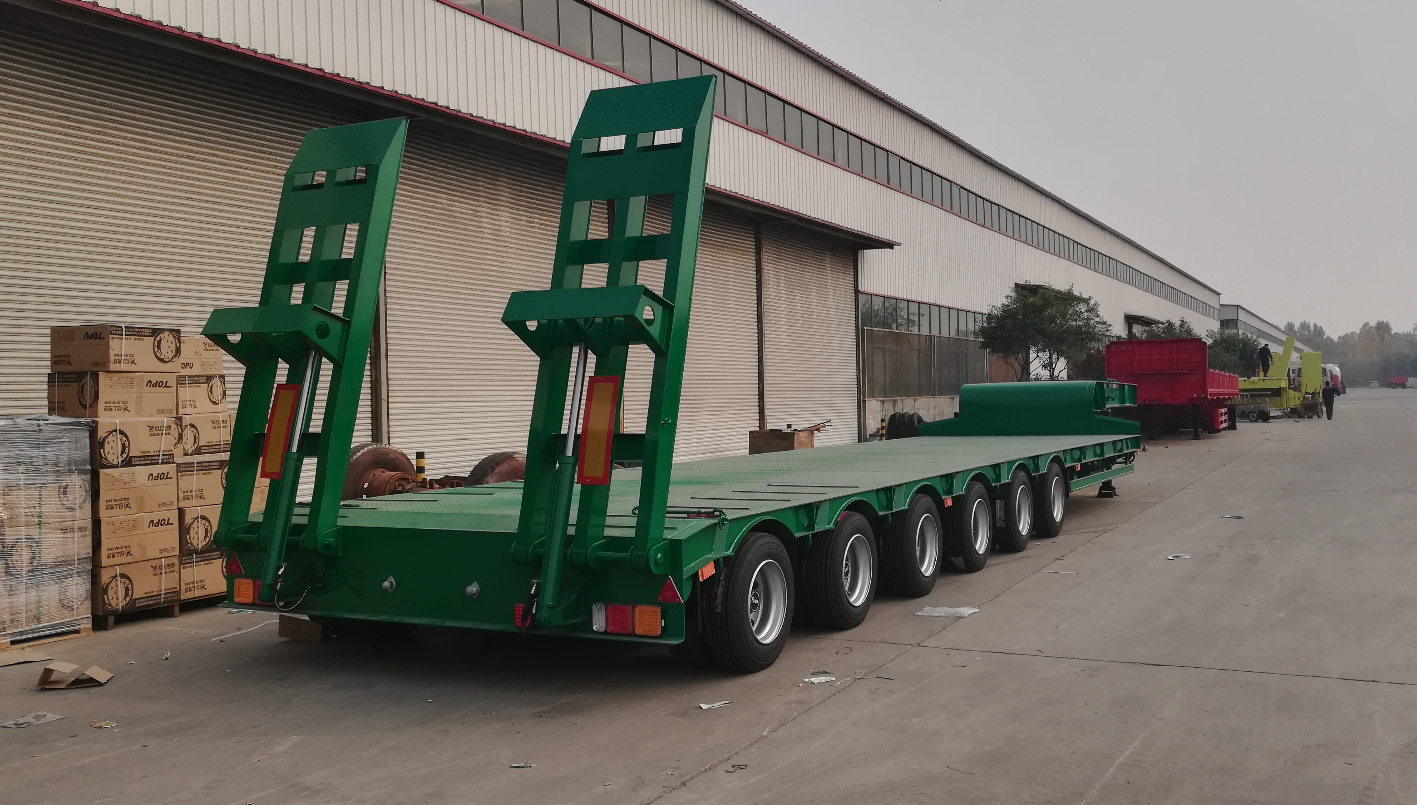

A: This setup is HUAYUE's core configuration for elevating job site safety and efficiency. Whether raising or lowering the 20-ton hydraulic ramps, locking the telescopic stroke, or adjusting the air suspension ride height, the operator never needs to stand underneath the chassis or inside blind machinery zones. Using the industrial-grade wireless remote, a single operator can manage the entire setup from a safe distance, removing the need for extra ground crew.

Q: Can this extended lowbed trailer haul standard marine shipping containers?

A: Yes, absolutely. We have precisely pre-embedded 3 pairs of heavy-duty intermodal container twistlocks directly into the deck frame. When the chassis is completely closed, it securely locks a standard 20-foot heavy container. When the central beam is extended by exactly 3 meters, the lock spacings perfectly align with the dimensions required for a standard 40-foot container or high-cube, providing multi-purpose asset deployment for your fleet.

--------------------------------------------------

HUAYUE Trailer

—— Manufacturing Hardcore Equipment, Delivering Global Trust From custom R&D to cross-border after-sales support, HUAYUE provides global logistics companies with more than just semi-trailers—we deliver the absolute confidence to overcome any unexpected challenge.
