HUAYUE Hydraulic Wind Blade Lifter Adapter for Ultra-Long 191M Rotor Blades

Engineering Overview

As wind turbine technology evolves, blades are exceeding 90 meters in length (designed for 191m+ rotor diameters), creating a massive logistics bottleneck. Standard extendable trailers can no longer navigate tight mountain roads, sharp village corners, or areas with strict height and width restrictions.

The HUAYUE Hydraulic Wind Blade Lifter/Adapter is the ultimate engineering solution for next-generation blade logistics. Instead of dragging the blade horizontally, this specialized equipment grips the blade root and utilizes active hydraulic control to lift, rotate (yaw), and tilt (pitch) the blade in real-time mid-journey. This ability to manipulate the blade's spatial position allows it to "dance" over power lines, houses, trees, and successfully turn through extremely tight hairpin curves.

Core Technologies & Benefits

1. Multi-Axis Hydraulic Flexibility

This is the heart of the equipment. As visible in our structural diagram, a network of heavy-duty hydraulic cylinders and a massive slewing bearing provide unparalleled flexibility:

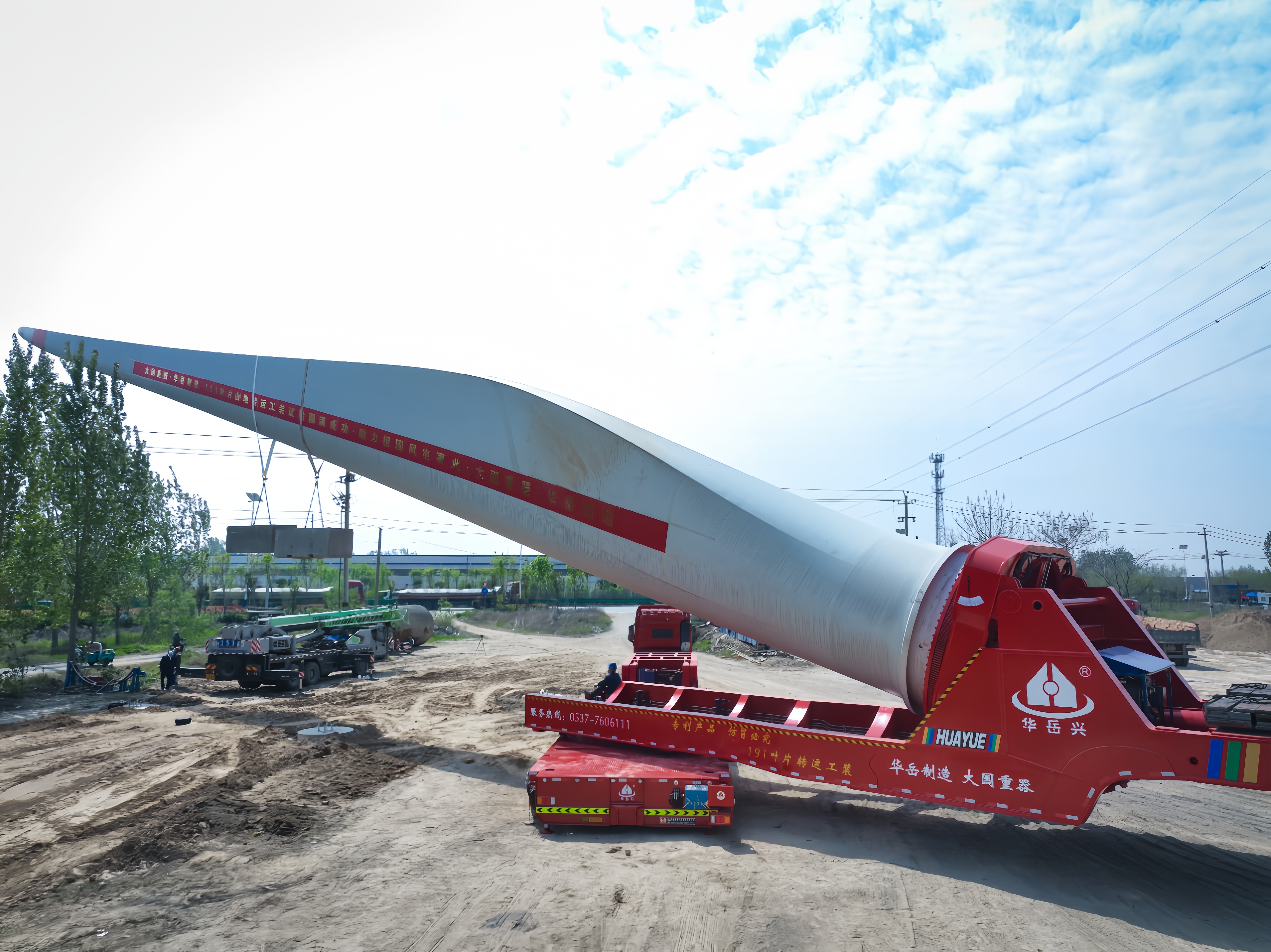

• Lifting (Pitching): The adapter can tilt the tip of a 90m+ blade upwards (up to 60° based on blade weight distribution) to clear mountain ridges or utility poles.

• Rotation (Yawing): The blade can rotate 360° horizontally on its axis. When navigating a sharp village S-curve, the blade can be rotated mid-turn to avoid hitting houses on either side.

2. Absolute Root Grip for 191M Blades

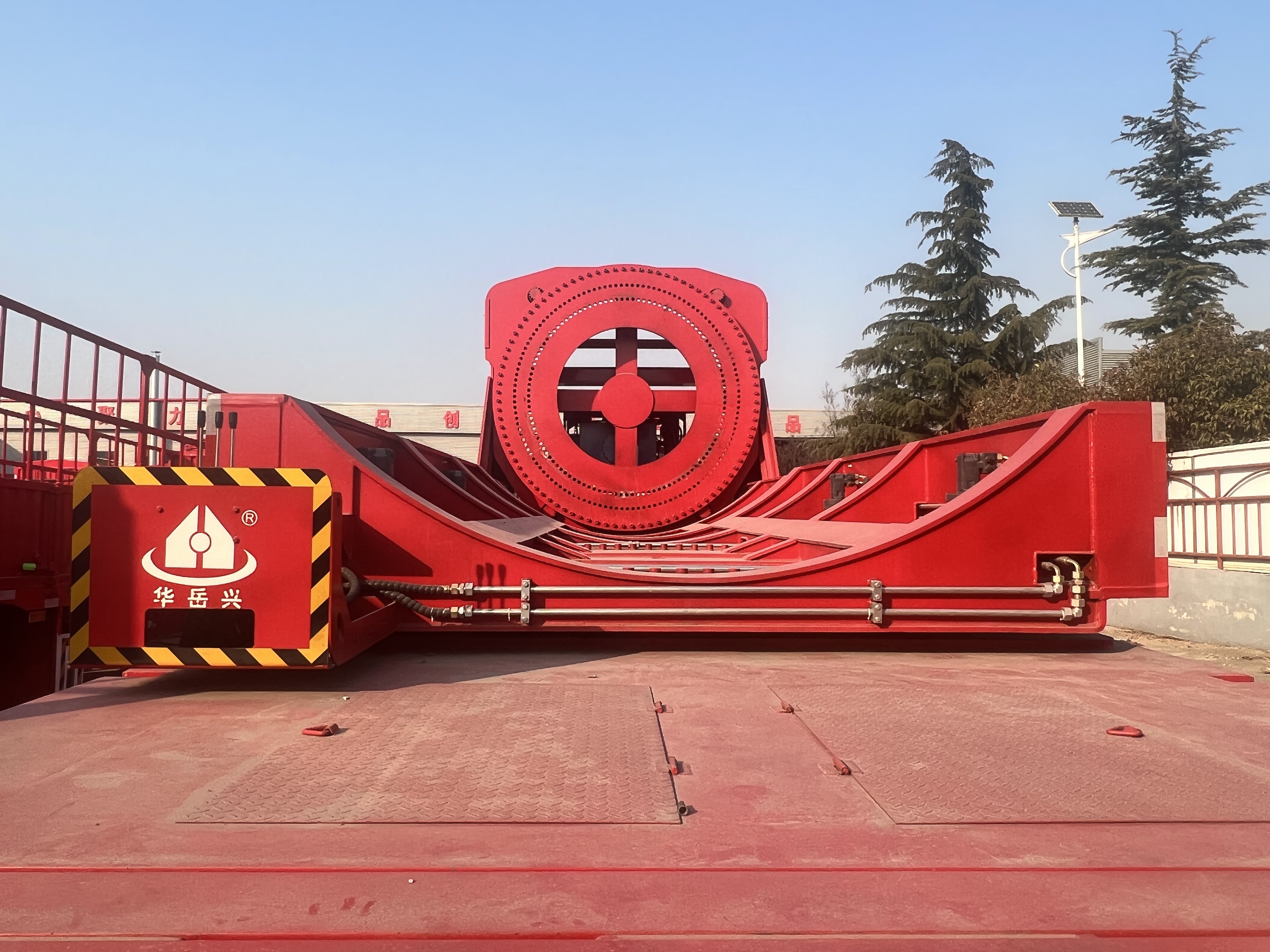

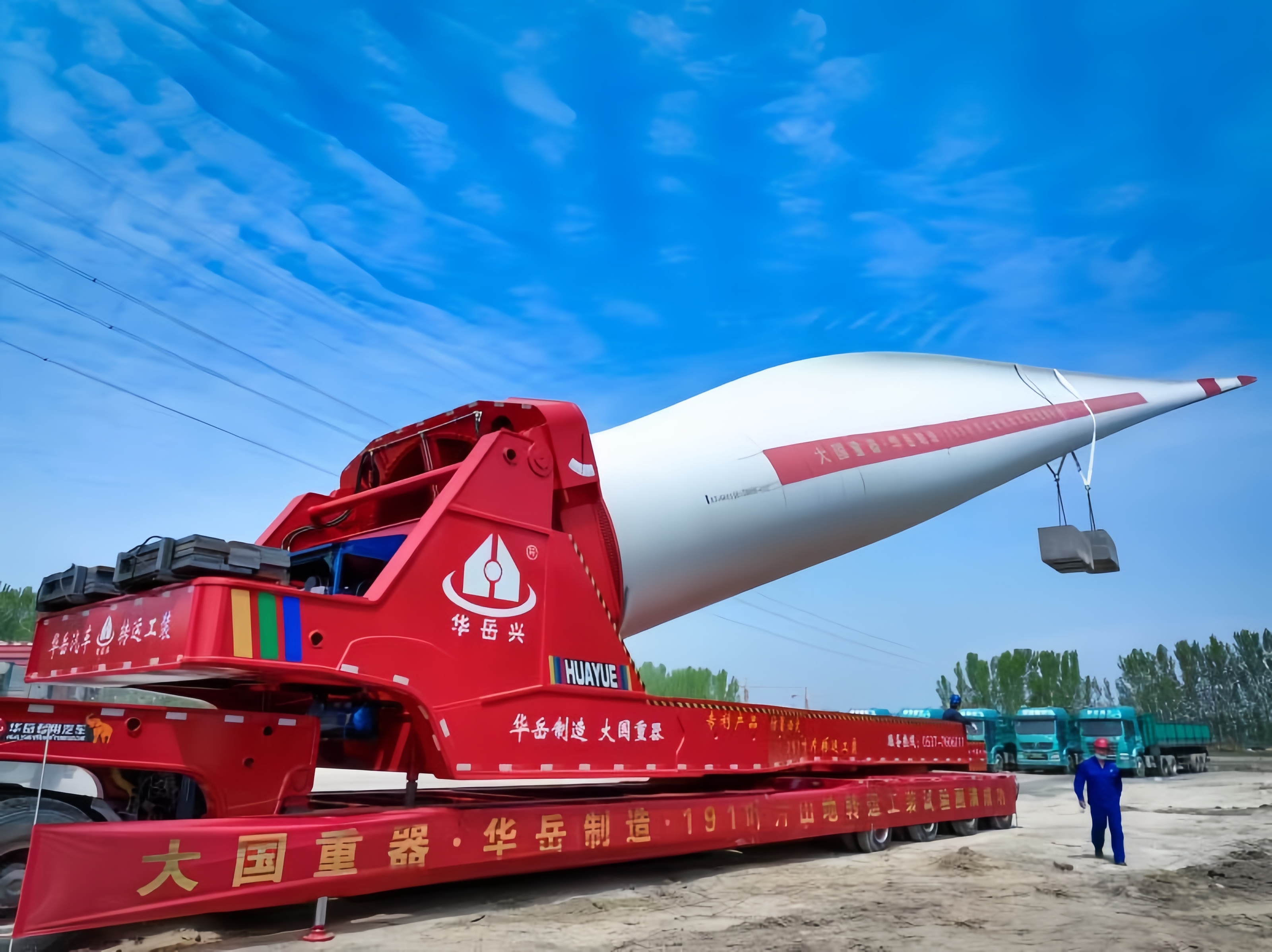

Safety during spatial manipulation is paramount. Our adapter is specifically engineered with a robust, multi-bolt gripping flange that locks onto the blade root with zero tolerance. As shown in this real-world scaling image, the HUAYUE system easily manages the extreme bending moments and gravitational forces generated by the root of a massive 191m rotor blade.

3. Independent Modular Power Station

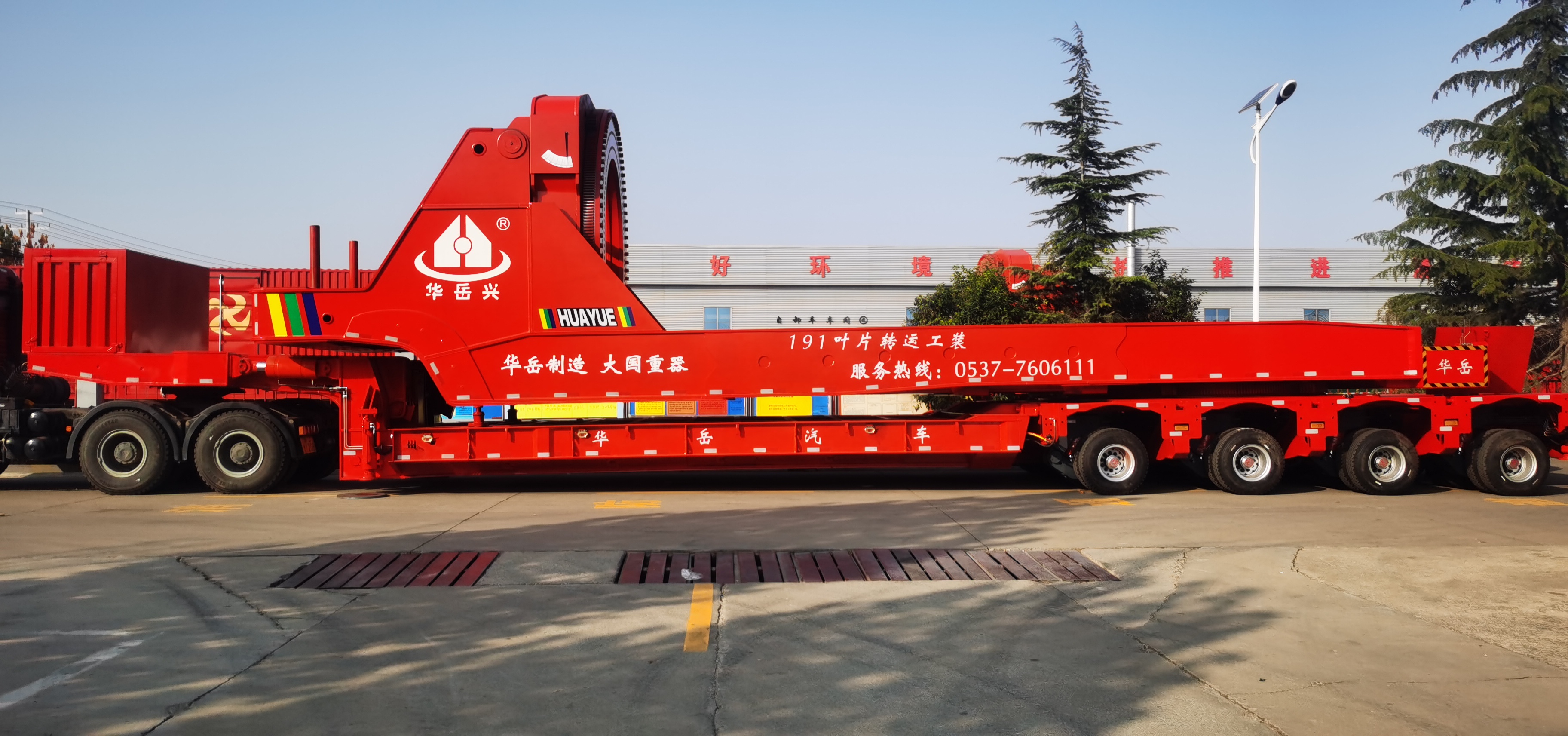

To ensure maximum fleet compatibility, the HUAYUE Blade Lifter features a customizable Power Source topology. We typically equip the adapter with an Independent Diesel Engine Power Station mounted directly onto the toolframe or the tool's toolbox. This independent power supply means the lifter's complex hydraulic rotation and lifting functions are self-contained and not reliant on a specific tractor head's PTO setup. It allows the tooling to be seamlessly integrated with standard modular trailers (SPMT or pulled modular trailers) from any major brand, maximizing fleet asset utilization for the logistics operator.

Frequently Asked Questions

Q: How does the blade lifter navigate sharp mountain hairpin turns or tight villages?

A: Traditional extendable trailers get stuck on sharp curves due to the immense turning radius of a 90m+ blade. The HUAYUE hydraulic lifter solves this by lifting (pitching) the blade upwards up to 60° and rotating (yawing) it 360°. This allows the blade to literally "step over" obstacles like trees, houses, and cliff edges during transit.

Q: Does the hydraulic lifter require a specialized tractor truck with a PTO system?

A: No. To maximize your fleet's flexibility, the HUAYUE wind blade adapter is typically equipped with an independent diesel power station. This means the complex hydraulic lifting and rotation systems are self-powered. You do not need to modify your tractor head with a PTO (Power Take-Off), allowing any standard heavy-duty prime mover to operate the equipment.

Q: Can this adapter be mounted on our existing modular trailers?

A: Yes. The HUAYUE hydraulic wind blade lifter is designed with a modular interface. It can be perfectly integrated onto standard multi-axle hydraulic modular trailers or SPMTs (Self-Propelled Modular Transporters), making it a highly versatile upgrade for your existing heavy-haul assets.

--------------------------------------------------
