HUAYUE Custom Mobile Substation Trailer

Engineering Overview

In power grid upgrades, remote mine development, or emergency rescue during natural disasters, a mobile substation acts as the core hub for restoring and ensuring a stable power supply. Because it carries multi-million-dollar heavy main transformers, high-voltage switchgear (GIS), and complex cable systems, ordinary semi-trailers cannot meet the strict requirements for structural rigidity, ride smoothness, and site maneuverability.

HUAYUE has custom-engineered the Multi-Axle Heavy-Duty Mobile Substation Trailer specifically for the global power infrastructure sector. Built with high-yield strength steel and featuring a fully enclosed safety isolation mesh, this chassis not only provides an indestructible mobile platform for sensitive electrical equipment but also completely solves the positioning dilemma of ultra-long equipment in restricted spaces through its hardcore all-wheel active hydraulic steering system.

Core Engineering Solutions

Video Analysis: Overcoming the "Maneuverability Nightmare" of Narrow Substations Please watch our factory live-testing video above. For a mobile substation loaded with a full set of power equipment, the greatest challenge is often reversing it precisely into an extremely narrow reserved concrete slot at the substation. In the video, you can clearly see the multiple axle lines of this heavy trailer undergoing large-angle active hydraulic steering deflection during a reversing maneuver. Unlike passive friction steering, our hydraulic forced steering system allows the operator to have absolute control over the rear trajectory. Even when reversing through extremely complex hairpin turns or narrow aisles, it achieves millimeter-level precise positioning without the need for repeated shunting, drastically reducing preparation time for emergency power restoration.

1. Extreme Rigidity Chassis Built for Heavy Power Assets

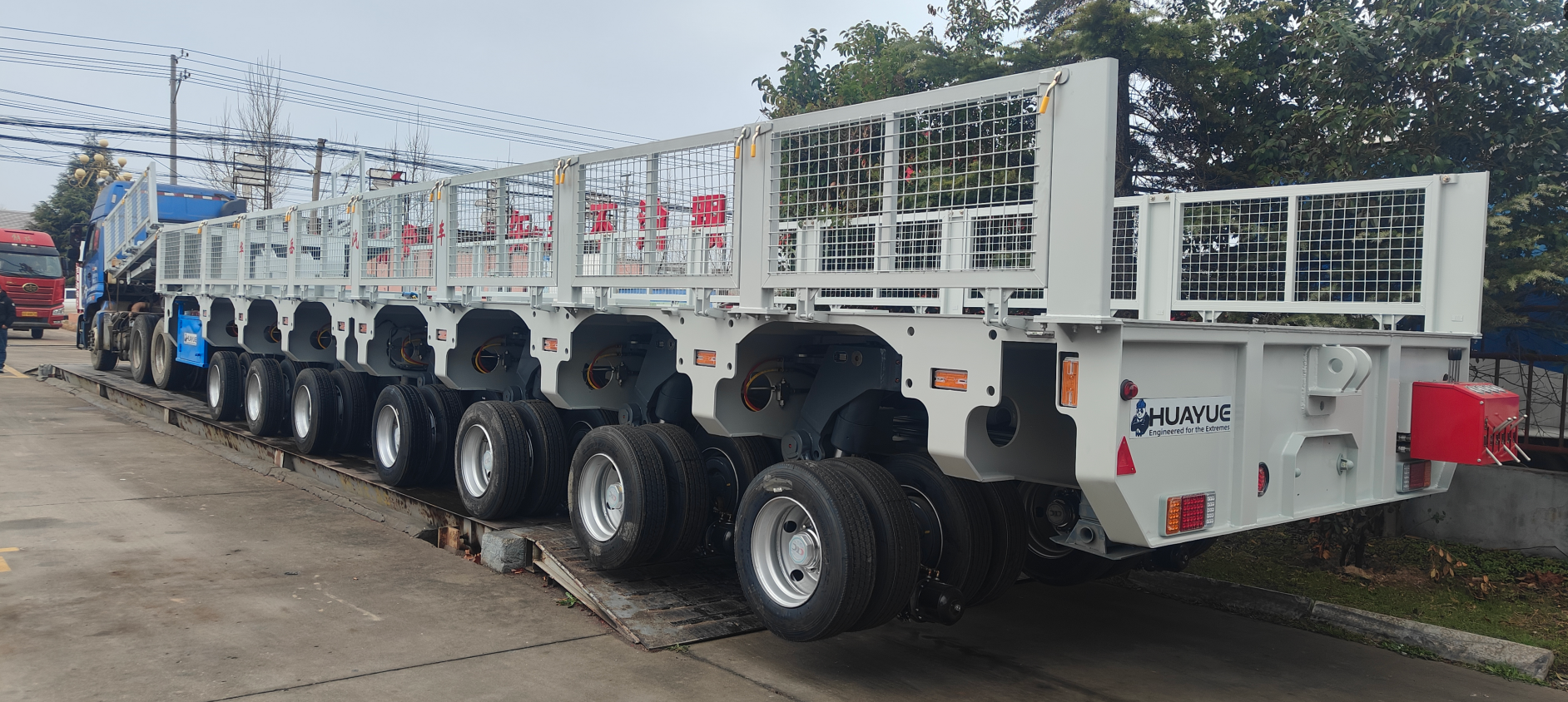

The core of a mobile substation is the main transformer, which is extremely heavy and possesses a highly concentrated center of gravity. If the chassis lacks sufficient torsional rigidity, traveling over bumpy roads can easily damage the transformer's internal coils. Through a dense multi-axle heavy-duty steering matrix, HUAYUE evenly distributes the massive concentrated load across every tire. The main beam is welded from specialized high-strength steel, offering superior resistance to sagging and torsion, ensuring power equipment remains rock-solid during long-distance transits.

2. Modular Layout & Comprehensive Safety Protection

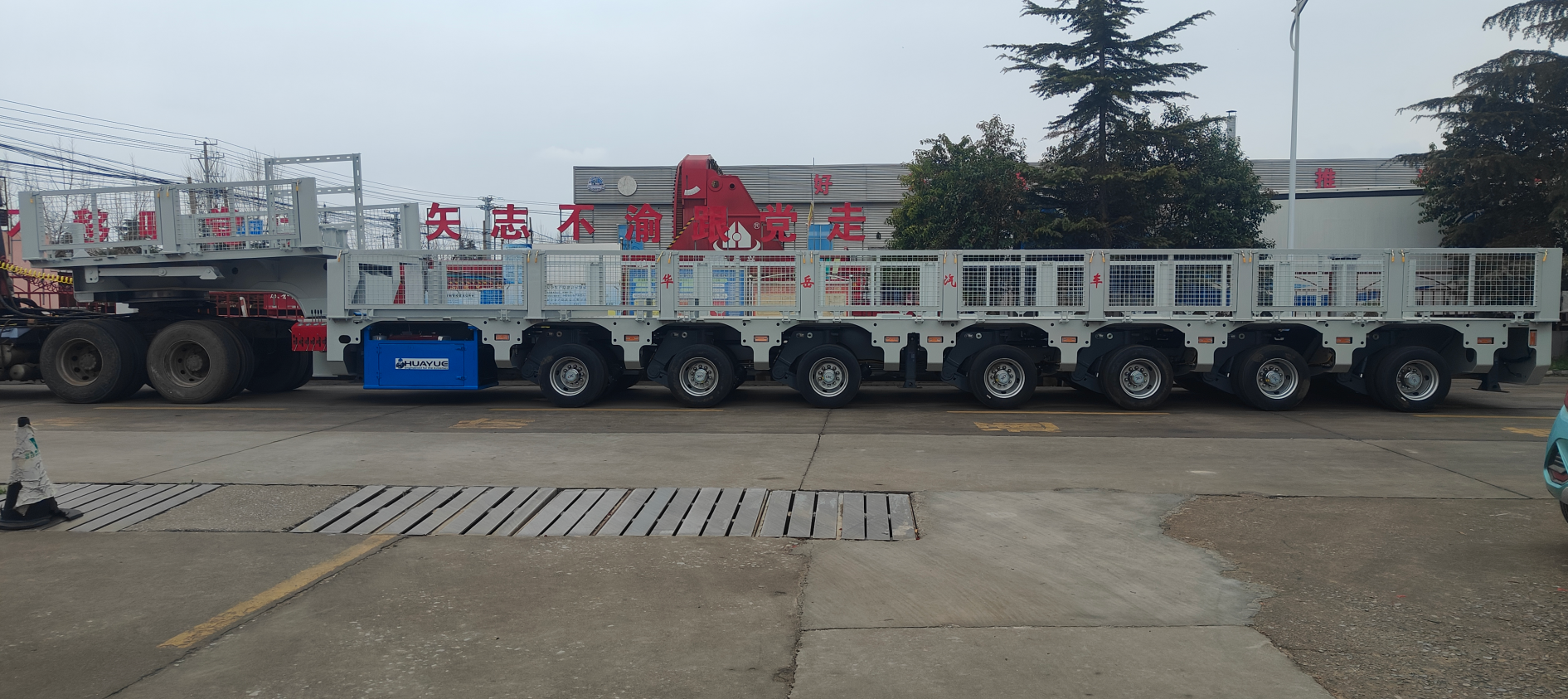

Considering the extreme danger of high-voltage grid operations, our chassis design prioritizes the safety of both operators and equipment. As shown in the actual vehicle photos, the entire working platform is surrounded by high-strength safety isolation fences and maintenance walkways. This not only protects expensive internal electrical components from external impact but also provides an absolutely safe operating boundary for electrical engineers during on-site wiring and maintenance.

Frequently Asked Questions

Q: How does this trailer protect the sensitive transformer when traveling over bumpy, unpaved roads (such as mining areas or disaster zones)?

A: The HUAYUE multi-axle mobile substation is equipped with an advanced suspension system. Combined with the wide gooseneck structure and heavy-duty kingpin at the front, it maximizes the absorption of road impacts. During the chassis design phase, we conduct 3D simulation tests based on the center of gravity and weight distribution of the client's specific transformer, ensuring that the vehicle's resonance frequency avoids the sensitive range of the power equipment under severe road conditions, providing ultimate shock absorption protection.

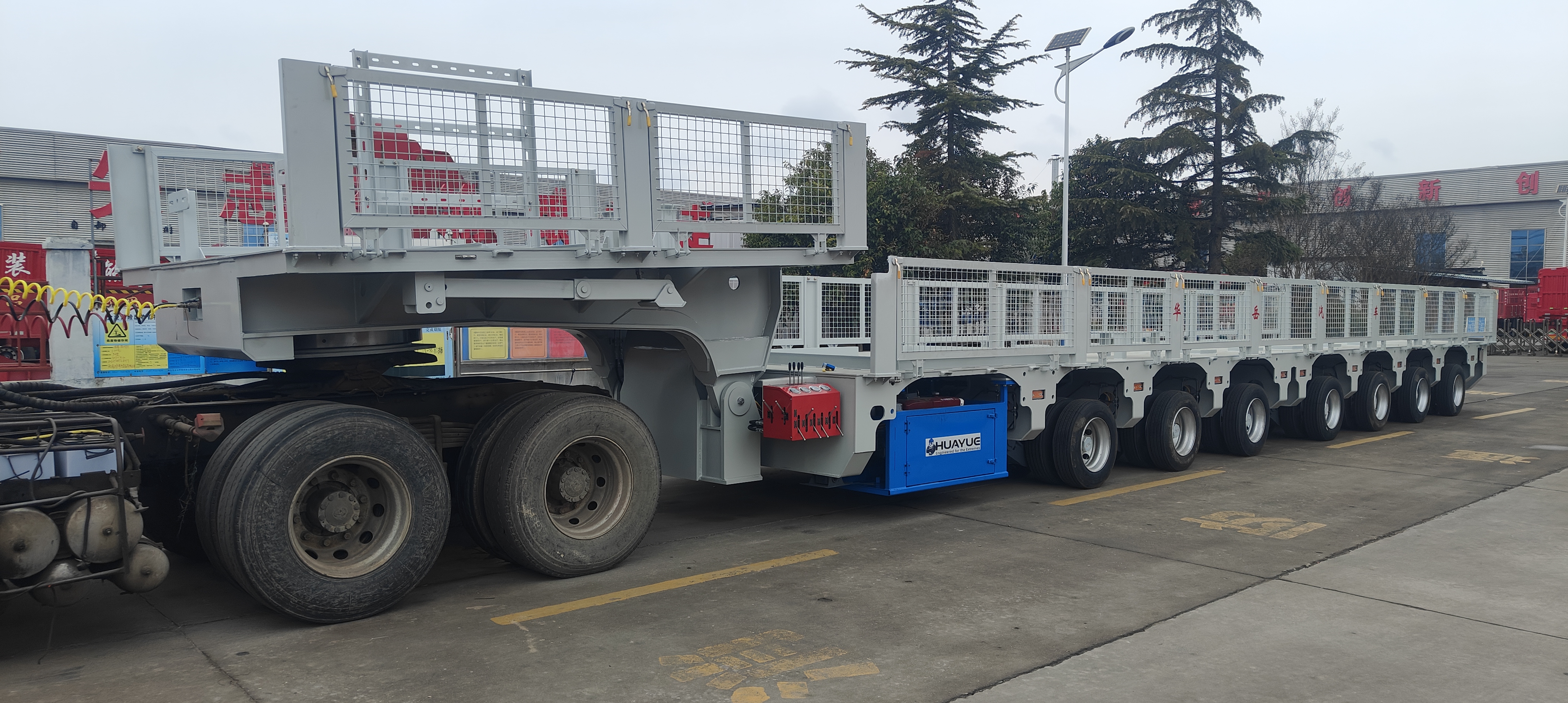

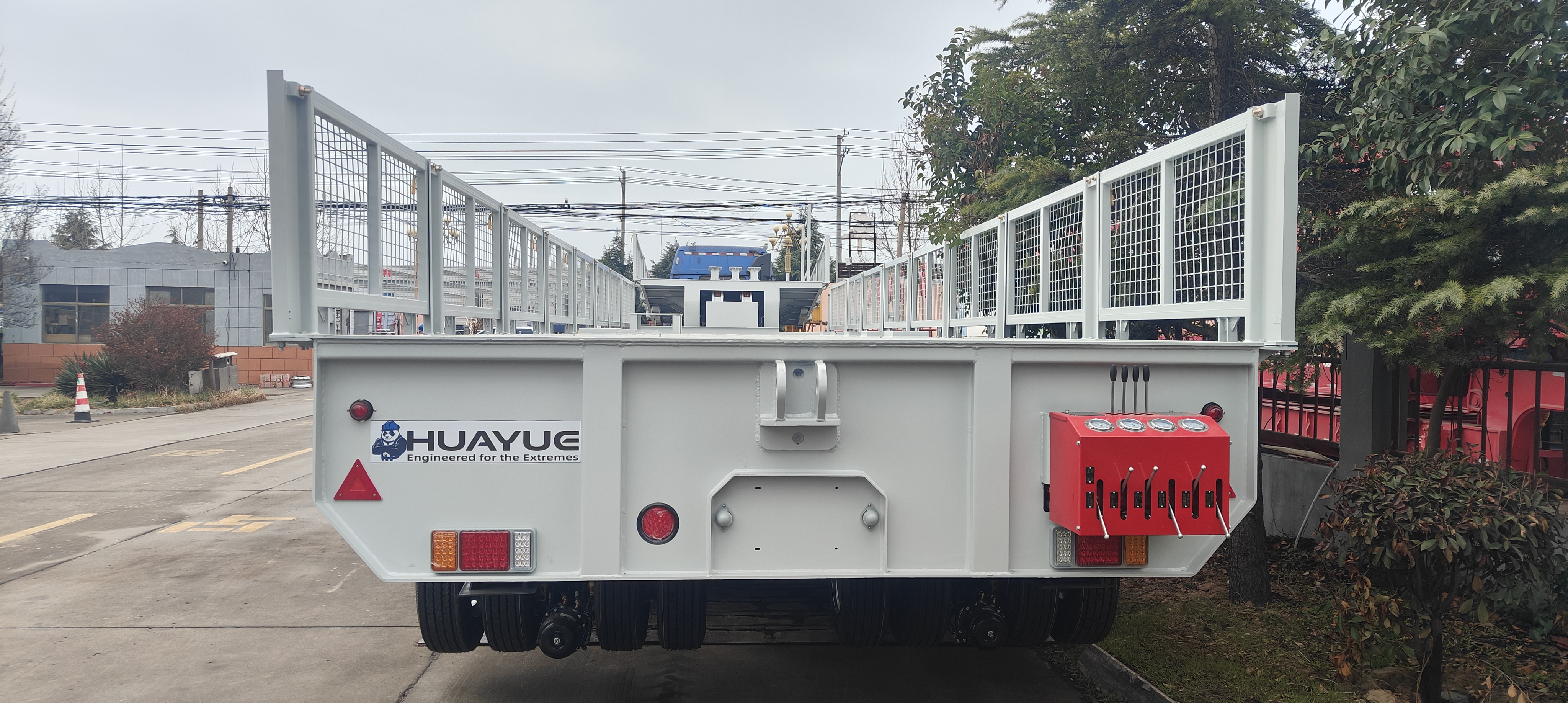

Q: What are the red control box at the rear and the blue power unit at the front of the chassis for?

A: The red control box at the rear integrates the hydraulic valve group terminals for the steering axles, while the blue module at the front is an independent hydraulic Power Pack. This setup allows the trailer to independently power its hydraulic steering system without relying on the tractor head's Power Take-Off (PTO), ensuring that steering micro-adjustments can be safely executed at any time in any complex scenario.

--------------------------------------------------

HUAYUE Trailer

—— Manufacturing Hardcore Equipment, Delivering Global Trust From custom R&D to cross-border after-sales support, HUAYUE provides global logistics companies with more than just semi-trailers—we deliver the absolute confidence to overcome any unexpected challenge.
