Heavy Duty Transformer Transport Trailer | 100T-300T Drop Deck Solutions

Moving a 150-ton transformer isn't just about handling the weight—it’s about surviving the center of gravity. A single miscalculation on a curve or a bridge can ruin a multi-million dollar power grid project.

1. The "Top-Heavy" Nightmare: Why Standard Flatbeds Fail

Transformers are dense and dangerously top-heavy. If you load a 100-ton substation onto a standard flatbed, your center of gravity is too high. The risk of tipping over on a mountain road or crosswind is massive.

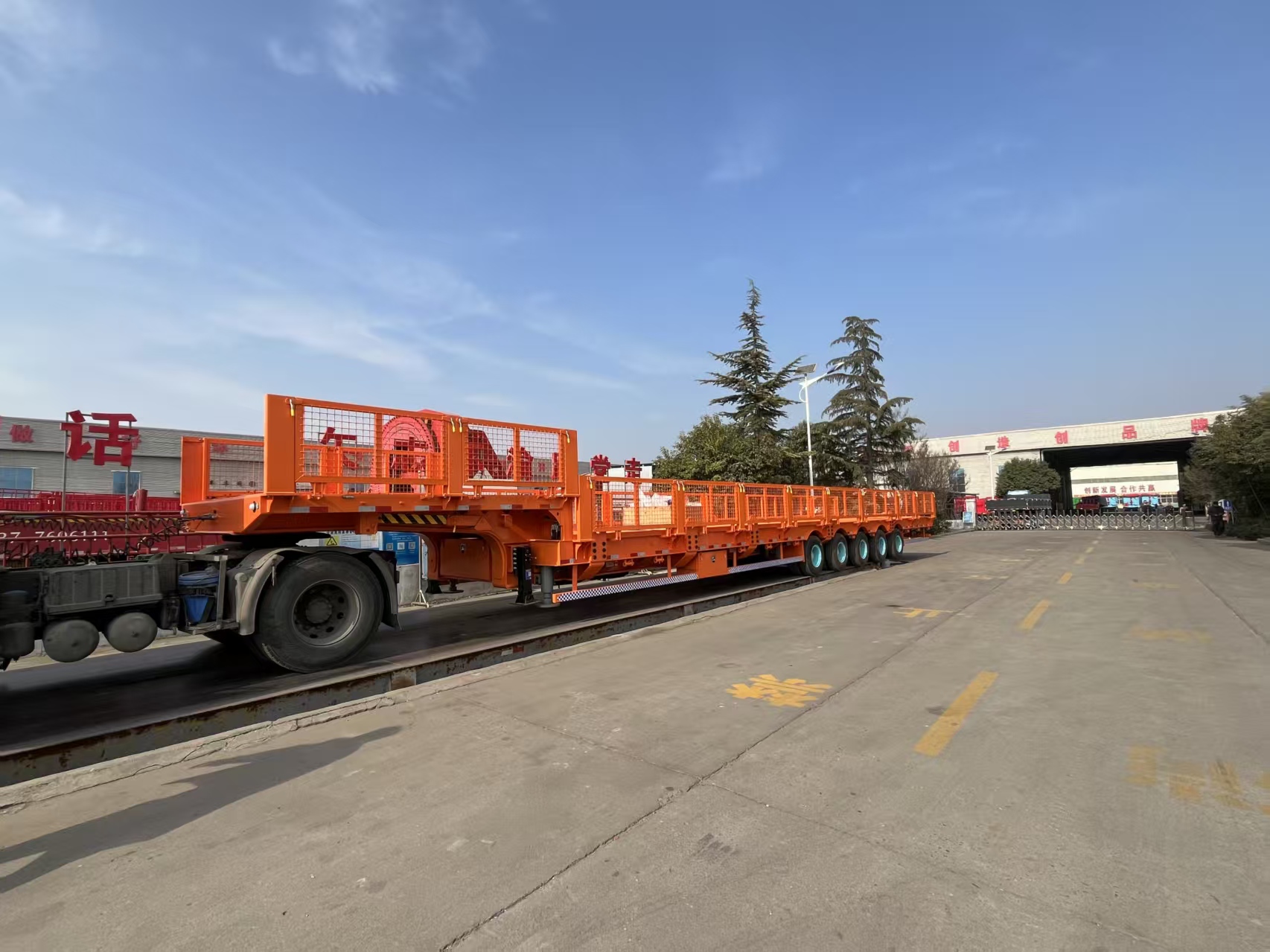

The HUAYUE Solution: Our Drop Deck design drops the loading platform down to as low as 350mm-500mm from the ground. By cradling the transformer closer to the asphalt, we dramatically lower the center of gravity, ensuring your multi-million dollar cargo stays planted around the tightest bends.

2. Beating the Bridge Limits: Multi-Axle Weight Distribution

You can have the strongest trailer in the world, but if the local bridge has a strict axle-load limit, your route is dead. Transformers create extreme "concentrated loads."

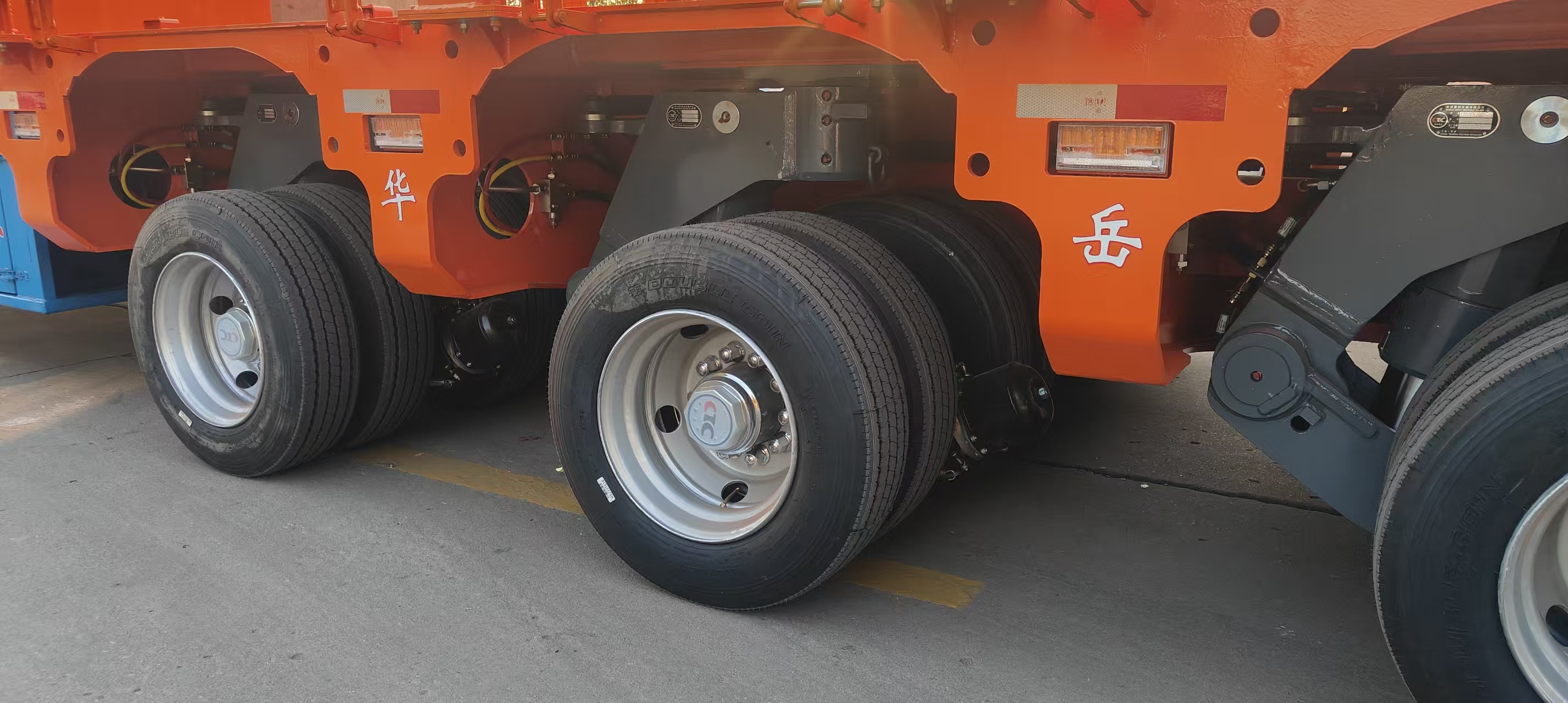

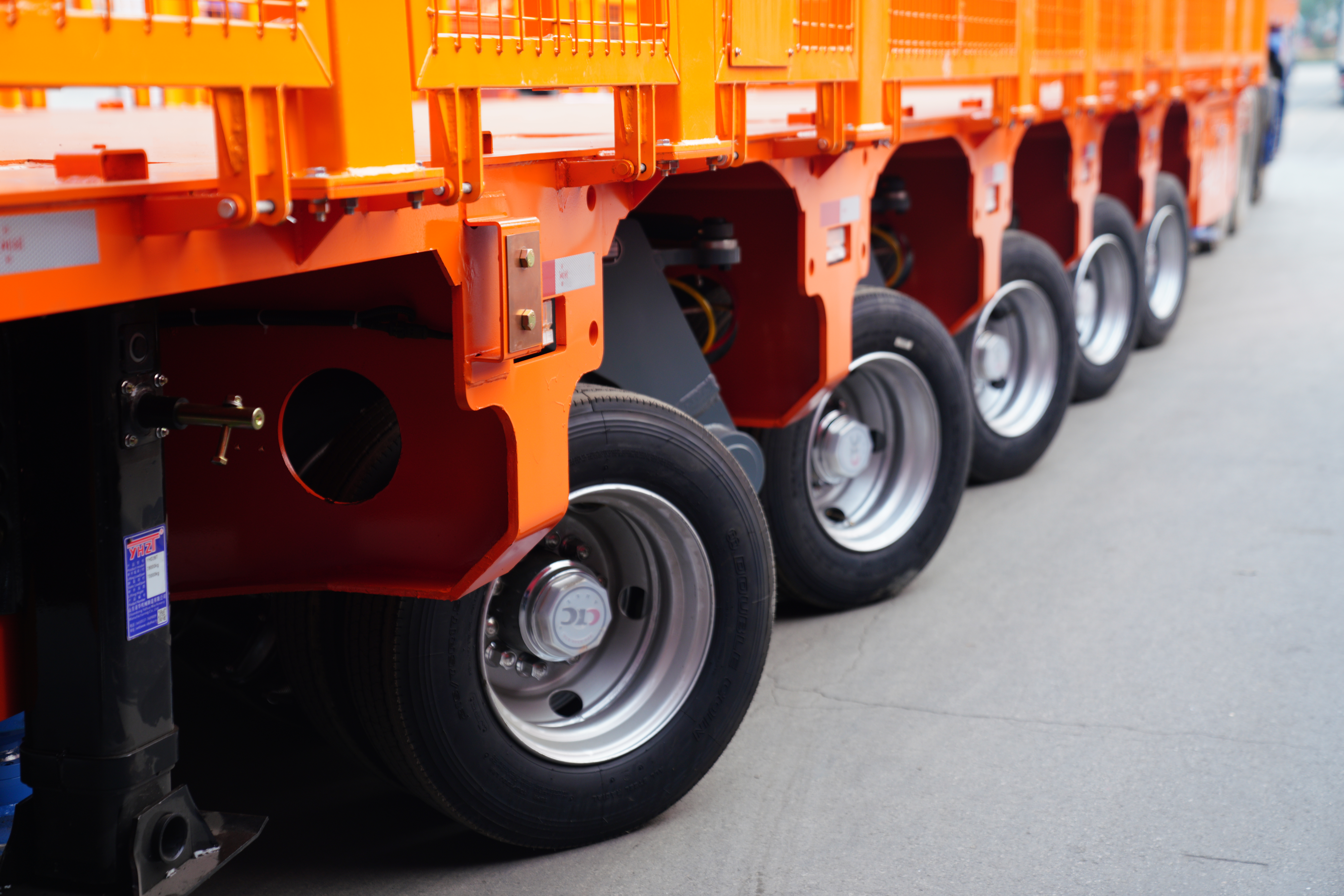

The Engineering Reality: We disperse that crushing weight. Based on your local highway regulations (whether it's the US DOT, European standards, or African road limits), we configure the trailer with hydraulically steered multi-axles.

• Need to spread 150 tons? We configure a multi-axle line setup that ensures no single axle exceeds the legal weight limit, allowing you to bypass costly route detours.

3. Hydraulic Suspension: The Ultimate Shock Absorber

Grid projects are often located off-road, at the end of unpaved, uneven gravel paths. A rigid mechanical suspension will transfer every pothole directly into the sensitive coils of the transformer.

• Adaptive Levelling: Our Hydraulic Suspension System actively compensates for uneven terrain. If the right wheels drop into a rut, the hydraulic cylinders instantly adjust to keep the drop-deck perfectly level.
• Zero Stress: This eliminates torsional twisting on the trailer frame and protects the internal components of the mobile substation.

4. Forged for the Extreme: High-Tensile Box Beam

When you place 200 tons on a 6-meter drop deck, the downward shearing force is unimaginable. Ordinary I-beams will snap.

HUAYUE utilizes a High-Tensile HG60 Steel Box-Beam Structure. By welding the steel into a closed box shape, we exponentially increase the torsional rigidity. We X-ray test our critical welds to guarantee that your trailer will not sag, warp, or crack under maximum payload, backed by our Lifetime Structure Warranty.

5. Complete Your Heavy Haul Fleet (Related Solutions)

A power grid project often requires moving more than just transformers.

• If you are transporting long, oversized renewable energy components, check out our [Wind Blade Adapter Trailer] for unmatched maneuverability.
• For standard heavy construction machinery like excavators to prepare the substation site, our low-profile [Detachable Gooseneck RGN Trailer] is the industry standard.

Ready to Move the Grid? Get a Custom Load Plan

Don't guess with a 150-ton payload. Send us the dimensions and weight of your heaviest transformer, and the HUAYUE engineering team will send you a free axle-load distribution calculation and trailer blueprint.
