7 Axle Mobile Substation Transport Trailer

Transporting mobile substations requires a specialized chassis that can protect highly sensitive and expensive electrical equipment from road vibrations, tight corners, and overhead clearance limits. Our 7 axle mobile substation transport trailer is engineered specifically for these high-risk logistics. It combines a heavy-duty payload capacity with advanced hydraulic systems to ensure absolute cargo stability and maneuverability on both highways and unpaved access roads.

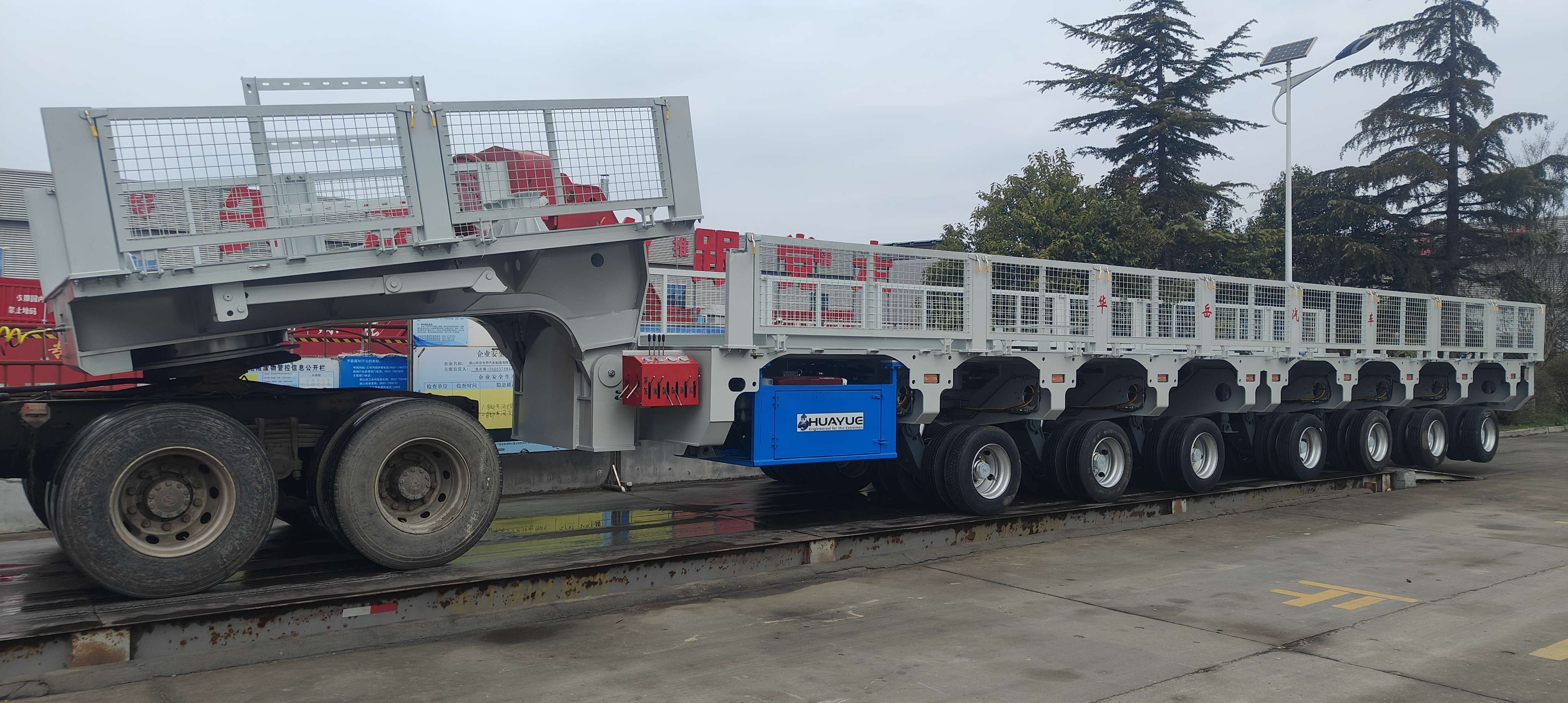

Active Hydraulic Lifting for Height Restrictions

One of the biggest challenges in substation transport is clearing low bridges and overhead power lines. This trailer features an active hydraulic lifting system. Operators can significantly lower the entire deck profile to safely pass under strict height limits. Conversely, the chassis can be raised to clear rocky terrains and deep potholes, providing maximum vertical flexibility during complex route navigation.

Independent Hydraulic Suspension for Cargo Protection

Mobile substations are extremely sensitive to vibrations and have a notoriously high center of gravity. To prevent structural damage and rollovers, we utilize a heavy-duty independent hydraulic suspension system. This setup actively absorbs road shocks and automatically compensates for severe dips or uneven ground. It ensures the main deck and the expensive cargo remain perfectly level at all times, completely eliminating tilting risks.

Multi-Axle Hydraulic Steering for Maneuverability

Navigating a 7-axle transport unit through narrow regional roads or tight substation gates is traditionally difficult. To solve this, all wheel bogies are equipped with a synchronous multi-axle hydraulic steering mechanism. The trailer wheels steer automatically based on the truck's turning angle, drastically reducing the turning radius. This prevents tire scrubbing and ensures the trailer can negotiate sharp bends safely without swaying.

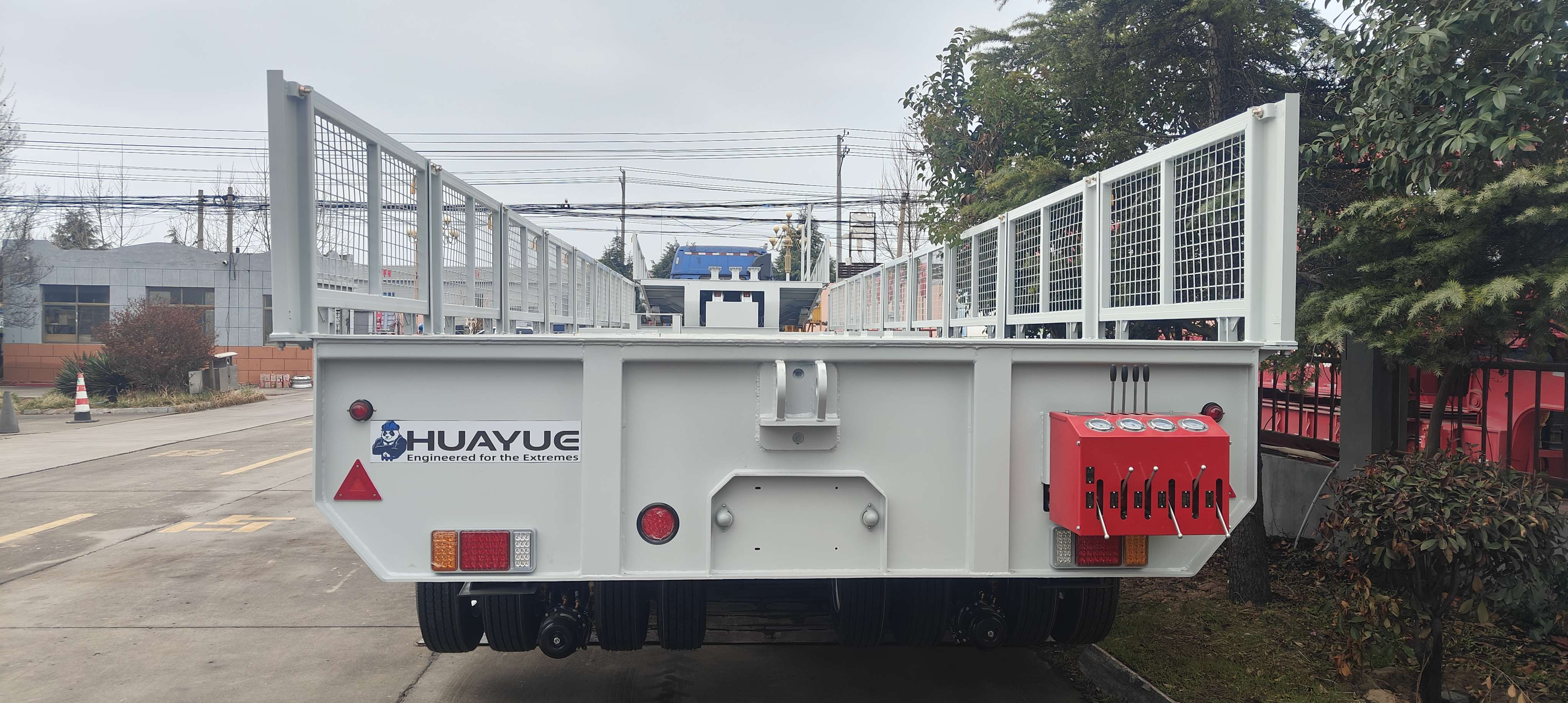

Rear Control Console and Independent Power Pack

For critical transit phases, the trailer is equipped with a dedicated rear manual valve control panel, an independent hydraulic power pack, and protective fencing. This allows operators to walk alongside the vehicle, precisely monitor hydraulic pressure gauges, and manually adjust the steering or lifting angles when absolute precision is required in high-risk zones.

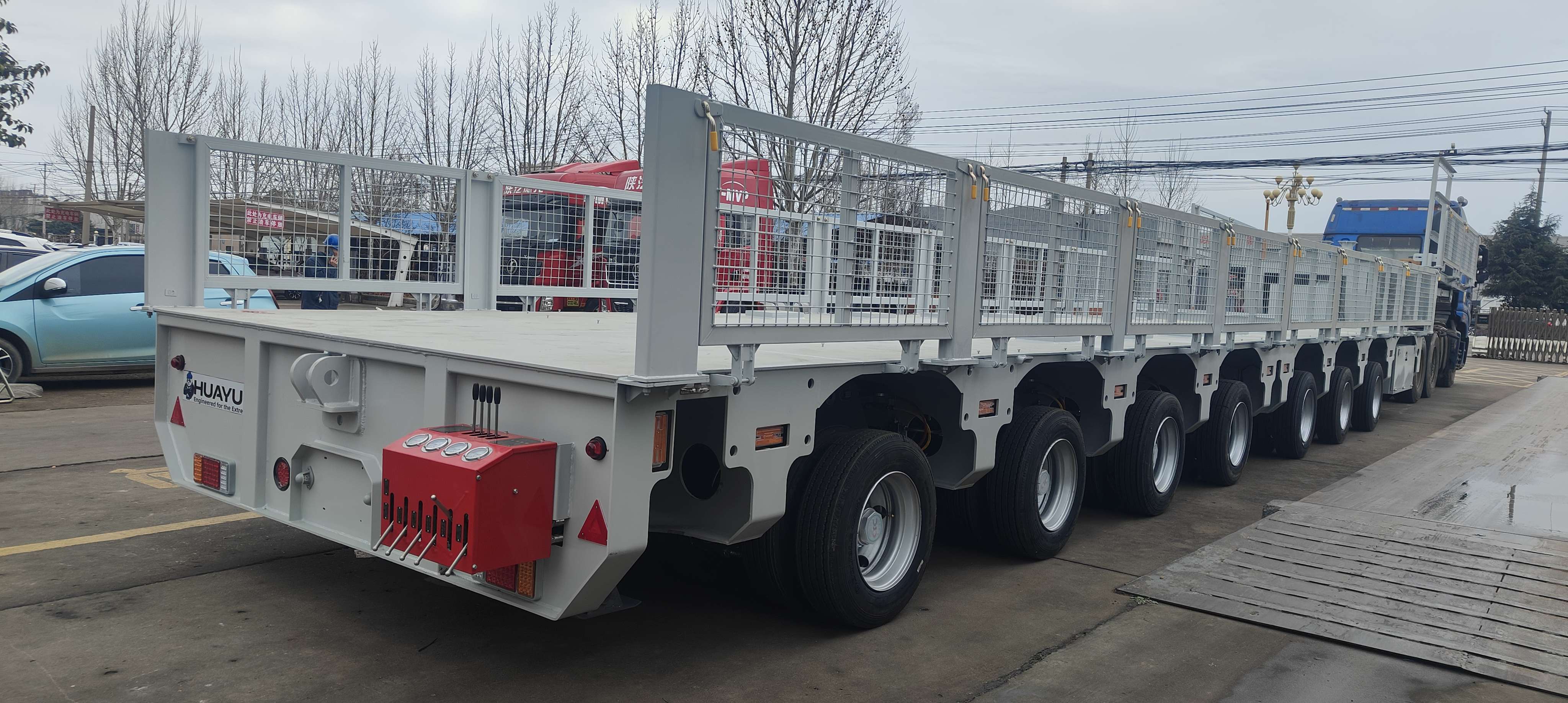

[An Australian client purchases this 7-axle mobile substation transport trailer to handle complex road conditions.]

Transporting high-value power equipment leaves zero room for error. Share your substation dimensions, payload weight, and specific route challenges with us. Our engineering team will provide a fully customized multi-axle trailer configuration designed to safely navigate any height limits or sharp turns, complete with a direct factory quote.
