7-Axle Self-Steering Trailers: Why Are Some Factories' Proposals Ridiculous?

When you are a heavy transport professional handling extreme oversized loads, you know that multi-axle trailers are complex machines. Customizing them isn't just about welding more axles together to increase payload; it is a strict game of physics, geometry, and hydraulic coordination.

Unfortunately, the market is full of small factories and unprofessional sales reps who don't understand heavy transport technology. To close a deal and make a quick profit, they will say "yes" to any customer request, completely ignoring whether the final product will actually work safely on the road.

Here is a real case study of how relying on "yes-men" almost cost one of our clients a fortune in ruined tires and compromised safety—and how true engineering solved it.

1. The Trap: The "Ridiculous" 7-Axle Proposal

Designing a heavy-duty multi-axle trailer requires precise calculation of pivot points and turning radii. A flawed steering configuration won't just make the trailer hard to drive; it will destroy your equipment.

(The Reason & Case) Recently, a client came to HUAYUE with a design plan they received from another factory. They wanted to build a highly customized 7-axle self-steering trailer for a specific mega-project. The competitor's sales team had promised a bizarre configuration to keep costs down: the middle four axles would steer, while the front and rear six axles would remain completely rigid (fixed).

When our engineers reviewed this blueprint, we found it frankly unbelievable. From a professional engineering perspective, it was a joke. But for the client, it was a hidden trap.

1、The Physics of Failure: What Would Actually Happen?

Why was this competitor's design so dangerous? We had to explain the raw physics of heavy transport to the client.

• Infinite Turning Radius: If the extreme ends of a 7-axle trailer are rigid and only the middle steers, the trailer loses its proper pivot point. When the truck tries to turn a corner, the rigid front and rear axles act like anchors, fighting the middle steering axles. The turning radius becomes impossibly large, making it useless on standard roads.

• Severe Tire Scrubbing: Physics dictates that when a trailer turns, the tires must follow an arc. In this flawed design, the front and rear rigid tires would be violently dragged sideways across the asphalt. This "hard friction" or "tire scrubbing" generates immense heat and wear. A brand-new set of expensive heavy-duty tires would be shredded in a matter of miles.

• Chassis Torsion and Structural Damage: The lateral (sideways) forces generated by dragging rigid axles don't just destroy tires; they transfer immense stress directly into the suspension and the main steel beam. Over time, this torsional stress causes microscopic fractures, leading to catastrophic chassis failure under a heavy load.

3. The HUAYUE Approach: Data Speaks Louder Than Sales Pitches

When facing a fundamentally flawed design, true professionals don't just argue with the client; they prove the truth with science.

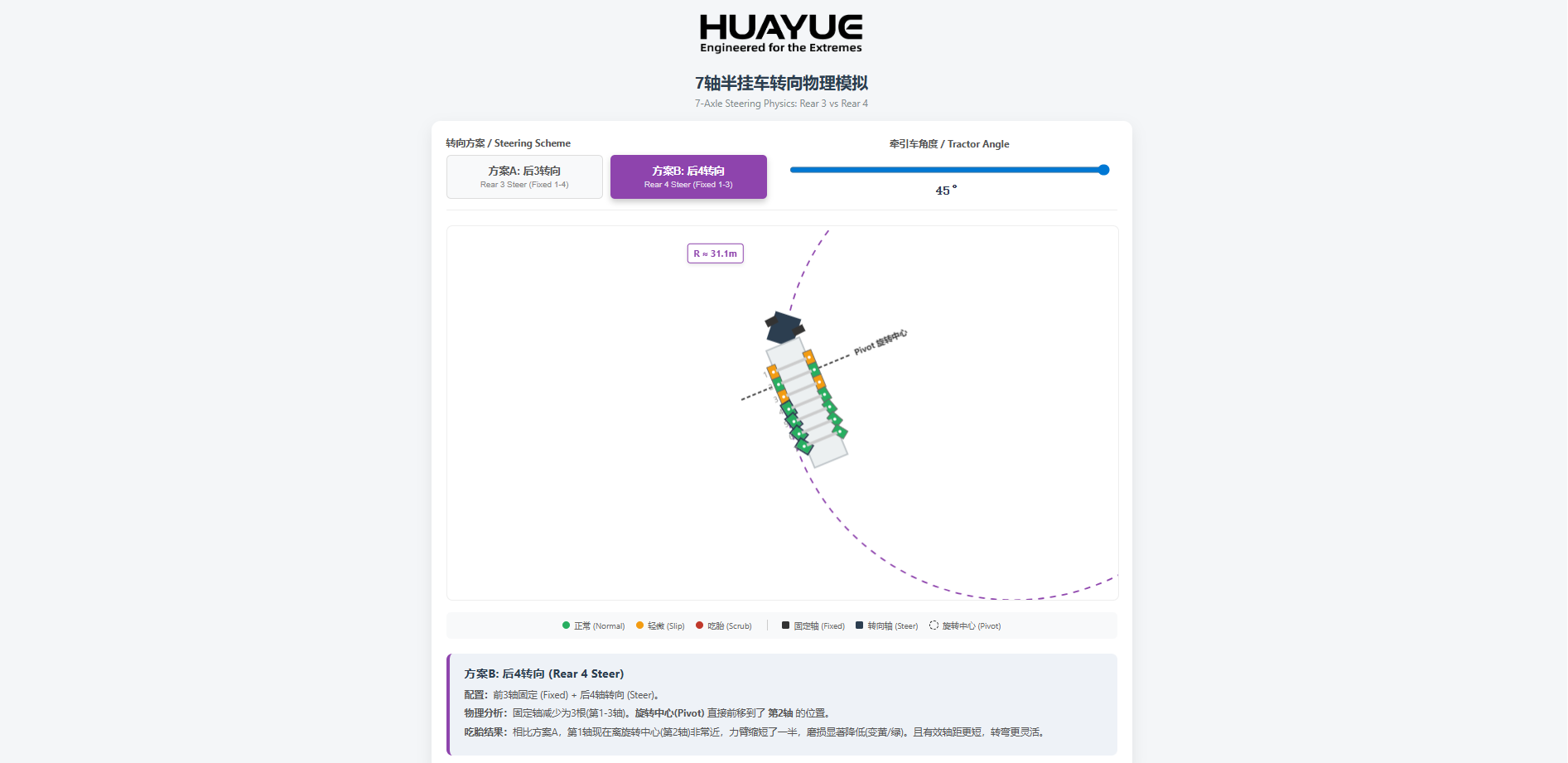

Instead of getting into a verbal debate about why the other factory's design was terrible, our engineering team went to work. We built a highly detailed dynamic 3D turning simulation (Swept Path Analysis) of their proposed 7-axle layout.

We presented the clear, undeniable data directly to the client. The simulation visually demonstrated:

1. The exact trajectory of the trailer during a 90-degree turn.

2. The severe scrub angle of the fixed tires.

3. The lateral pressure distribution across the chassis.

Seeing the 3D model struggle to turn a simple corner immediately made the client realize the danger of the competitor's "cheap and easy" proposal.

4. How a True 7-Axle Trailer Should Be Engineered

So, what was HUAYUE's solution? If you need a 7-axle trailer to maneuver effectively, you cannot rely on simple self-steering axles in the middle.

We proposed a proper Hydraulic Forced Steering System. In a professional setup, the steering angle of the trailer's axles is mechanically or hydraulically synchronized with the rotation of the tractor's fifth wheel.

• The front axles steer in coordination with the truck.

• The rear axles counter-steer to drastically reduce the turning radius.

• Every axle has a mathematically calculated steering angle (following the Ackermann steering geometry) to ensure all wheels roll smoothly through the curve with zero sideways dragging.

This is how European heavy haulers do it, and this is the standard HUAYUE delivers.

5. The Core Value: Honesty Over Easy Money

In the heavy manufacturing industry, honesty is the ultimate weapon.

At HUAYUE, our philosophy is simple and unyielding: We would rather lose an order by telling the truth than build a garbage product that violates engineering common sense just to please a client. Unprofessional factories will build whatever you ask for, even if it is doomed to fail, because you are the one paying the ultimate price in destroyed tires, road accidents, and project delays.

We refuse to operate that way. We design solutions that actually work in the real world.
