Gooseneck Snapping Under 80-Ton Hard Braking? Uncovering Anti-Tear Engineering

In the physics of heavy haul logistics, static load capacity is merely the baseline; the true test of survival occurs in dynamic split-seconds. Imagine this extreme scenario: your fleet is hauling an 80-ton heavy crawler excavator, cruising down the highway at 80 km/h. Suddenly, an emergency occurs ahead, and the driver slams on the brakes. In that fatal instant, the 80-ton steel behemoth surges forward with massive geometric inertia. All that destructive energy is instantaneously converted into terrifying shear stress, violently tearing at the weakest point of the trailer—the transition bend of the towing gooseneck. This article deeply dissects how HUAYUE heavy-duty lowbed trailers utilize chassis structural reinforcement and advanced metallurgy to completely eradicate the lethal risk of gooseneck snapping.

The Fatal Moment: The Physics of an 80-Ton Emergency Brake

Standard lowbed trailers are highly susceptible to catastrophic accidents during such extreme dynamic braking. Because the inertia of the heavy machinery cannot dissipate instantly, the trailer's main beam is violently pushed forward, while the prime mover's fifth wheel rigidly pulls the kingpin backward. These two opposing forces, reaching hundreds of kilonewtons, concentrate entirely at the "transition zone" where the gooseneck meets the main deck. If the steel grade is insufficient or lacks scientific stress dispersion design, this immense pulling force will instantly tear the metal welds apart. This can lead to a totaled trailer or, worse, the heavy excavator crushing the truck cabin, causing fatal consequences.

Structural Reinforcement: Double Web Plates and Stress Relief Engineering

To combat this steel-tearing dynamic shear force, HUAYUE incorporates absolute redundant engineering into our gooseneck design.

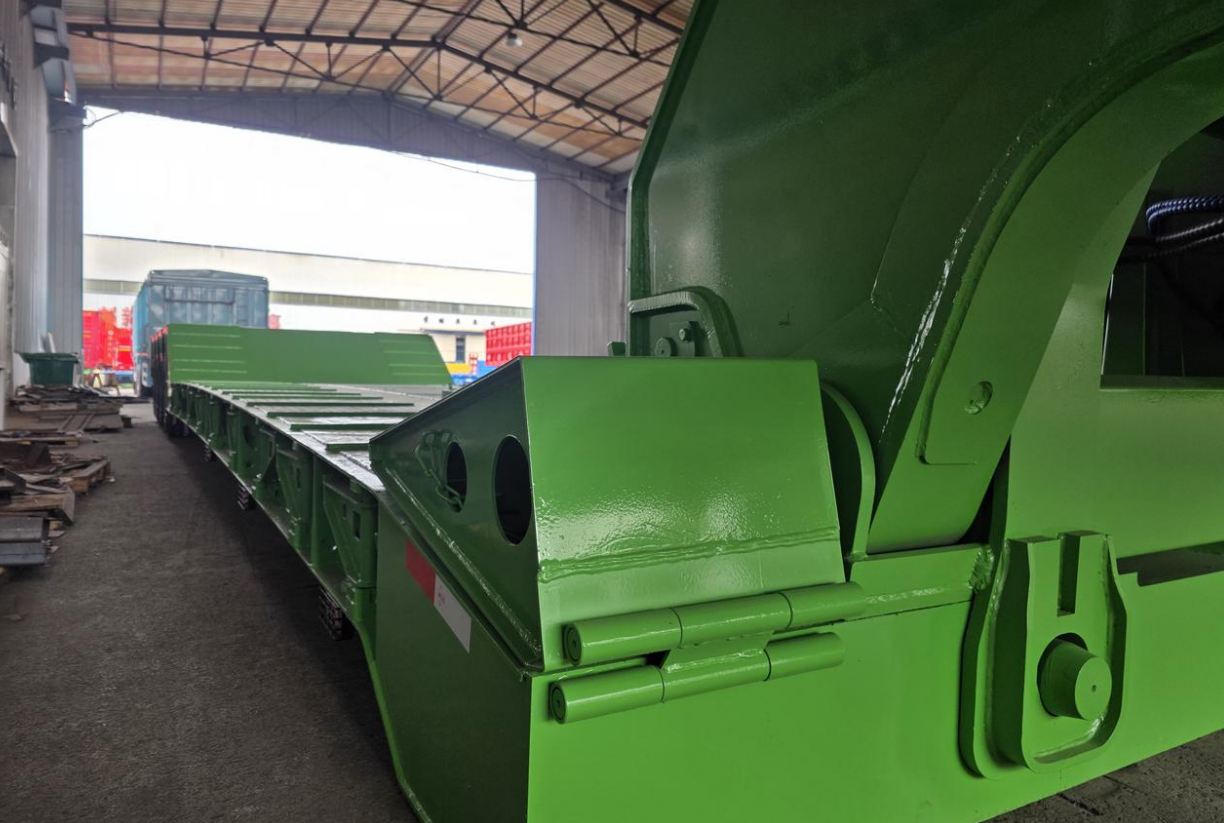

• Double Web Plates: In the highly stressed transition zone between the gooseneck and the main beam, we abandon standard single-plate structures. Instead, we overlap and weld two layers of high-tensile special steel. This exponentially increases the tensile cross-sectional area, forming an indestructible physical defense line.

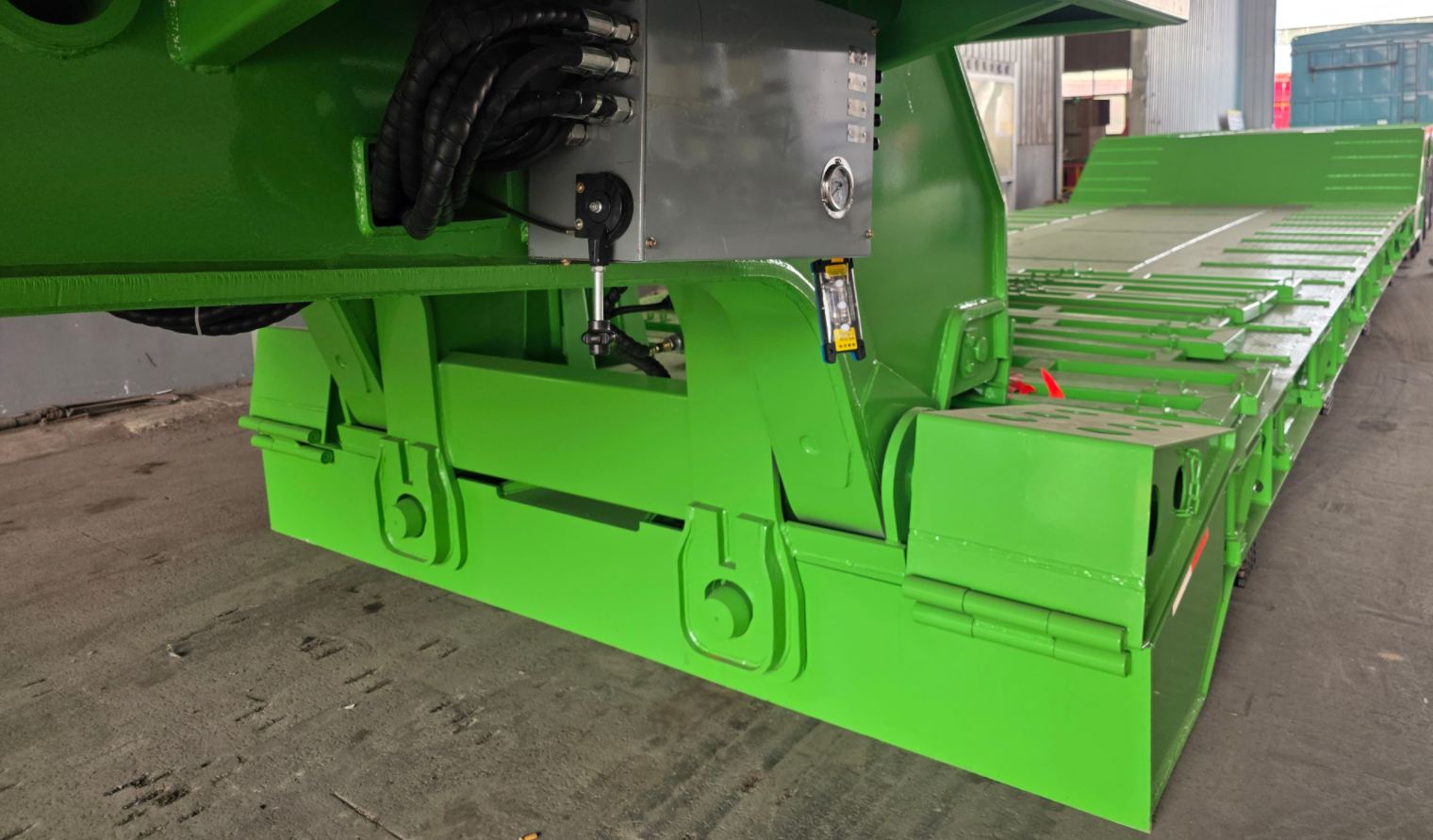

• Box-Beam Structure: The entire gooseneck body features a closed box-beam design, densely packed with interlocking internal reinforcement ribs. When the impact of a hard brake hits, this structure instantaneously disperses the concentrated shear forces throughout the three-dimensional network of the gooseneck, achieving flawless stress relief.

Premium Metallurgy: Seamless Fusion Against Extreme Shear Forces

Even the strongest steel plates are useless if the welds tear. HUAYUE entirely rejects spot or intermittent welding during gooseneck assembly. We mandate 100% fully penetrated automated double-sided submerged arc welding. We utilize specialized high-tensile welding wire that perfectly matches the base metal, ensuring the tensile yield strength of the weld zone is equal to or even exceeds the Q690 high-tensile steel itself, achieving true seamless fusion of equal strength.

HUAYUE's Advantages

From the strict screening of Q690 ultra-high-yield steel to the structural mechanics of double web plates, HUAYUE insists on manufacturing chassis with safety redundancies that far exceed industry standards. We don't just solve the static deformation of carrying 100 tons; we safeguard the absolute security of your assets and personnel during severe dynamic conditions like emergency braking and steep downhill descents.

Customized Solutions for Any Scenario

We understand that transport centers of gravity and road conditions vary wildly between fleets, which is why we provide Customized Solutions for Any Scenario:

• Customized widened and thickened anti-torsion goosenecks for ultra-high center of gravity cargo (e.g., large wind power equipment).

• Precisely calculated and customized gooseneck ground clearances to perfectly match the fifth-wheel height of your specific prime movers, ensuring a level towing profile.

• Customized interchangeable high-strength forged kingpins in both 50# (2-inch) and 90# (3.5-inch) specifications for ultimate towing flexibility.

Frequently Asked Questions

Q: Will adding double steel plates and reinforcement ribs to the gooseneck restrict the turning flexibility of the truck head?

A: Not at all. All reinforcement engineering is confined within the internal box beam of the gooseneck. Externally, we maintain perfectly engineered front chamfering that adheres strictly to Ackermann steering geometry. This ensures that even during extreme cornering in narrow job sites, there is absolutely ample clearance between the truck chassis and the trailer gooseneck to prevent any physical interference.

Q: Besides gooseneck rigidity, what else ensures safety when driving a fully loaded 80-ton trailer down a long, steep grade?

A: While structural rigidity is the physical defense, active safety is equally vital. All HUAYUE heavy-duty trailers come standard with large-capacity air reservoirs and WABCO relay valves (with optional EBS systems). When braking on a long descent, the rapid-response pneumatic braking system instantly locks the rear wheels, turning the trailer into a massive "deceleration anchor," fundamentally reducing the geometric inertia force slamming into the gooseneck.

--------------------------------------------------
