Spring Ramps vs. Hydraulic Ramps: Hidden Labor Costs and Safety Risks for Fleets

In the transport and dispatch of heavy machinery, fleet managers often concentrate their budgets on the maximum load capacity of the chassis, completely overlooking the rear ramps—the critical bottleneck that dictates daily loading efficiency. As highlighted in our comprehensive guide, [How to Choose a 60-100T Heavy-Duty Lowbed Trailer? Anti-Sagging & Loading Safety Guide], while the main beam determines the load-bearing baseline, the design of the rear loading corridor directly impacts asset safety and the fleet's hidden operational costs. This article tackles daily fleet pain points head-on, calculating the true "economic and safety costs" between traditional spring ramps and high-power hydraulic ramps.

Physical Exhaustion: The Hidden "Sweat Costs" of Traditional Spring Ramps

While spring ramps may appear to have a lower initial procurement cost, they are a literal "labor black hole."

• Intense Physical Strain: Deploying and lifting a pair of heavy solid steel ramps typically requires two to three strong workers pulling with maximum effort. In rainy, snowy conditions or continuous mining operations, operator stamina is rapidly depleted.

• Hidden Injury Risks: This primitive manual labor makes operators highly susceptible to lumbar muscle strains, torn ligaments, or severe injuries from snapping springs. The resulting injury claims and lost workdays easily wipe out any initial cost savings.

Leverage Disaster: The "Seesaw Effect" Triggered by Short Ramps

Constrained by the physical limits of tension springs, traditional spring ramps cannot balance extreme weight with extended length, forcing them to be manufactured dangerously short.

• Excessive Steepness: Runways that are too short result in climbing angles frequently exceeding 20° or even 25°.

• Fatal Center of Gravity Shift: When an 80-ton crawler excavator reaches the apex of a short, steep ramp, the extended overhang causes an instantaneous shift in its center of gravity. This triggers a lethal "seesaw effect," causing the tracked undercarriage to violently slam against the main beam, or worse, resulting in a backward rollover and irreversible asset destruction.

Minimalist Single-Operator Control: The Superiority of HUAYUE's 4.2m Double-Folding Hydraulic Ramps

To completely liberate manpower and eliminate physical hazards, HUAYUE standardizes high-power Double-Folding Hydraulic Ramps as the core component of our heavy-duty lowbeds.

• 30-Second Single-Operator Task: As shown in the image above, an operator simply engages the hydraulic control valve, and the robust high-pressure cylinders smoothly deploy or fold the multi-hundred-kilogram ramps in under 30 seconds, achieving true "zero physical exertion."

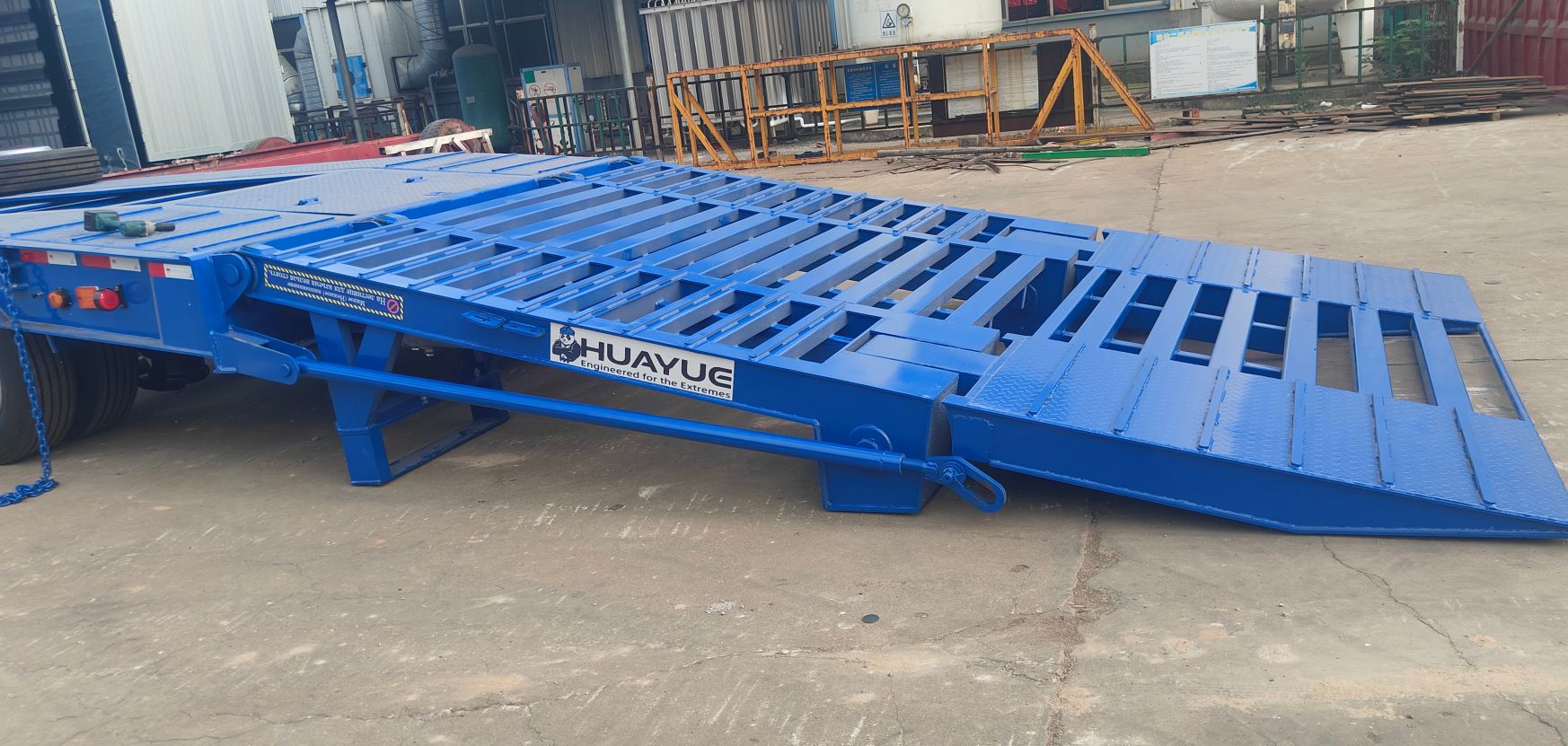

• Extended Safe Runway: The side perspective clearly demonstrates the physical advantage of the double-folding structure—it extends the total length to an impressive 4.2 meters. This mathematically elongates the runway, firmly keeping the climbing angle under 15°, effectively eradicating the risks of slipping and seesaw rollovers associated with steep inclines.

HUAYUE's Advantages

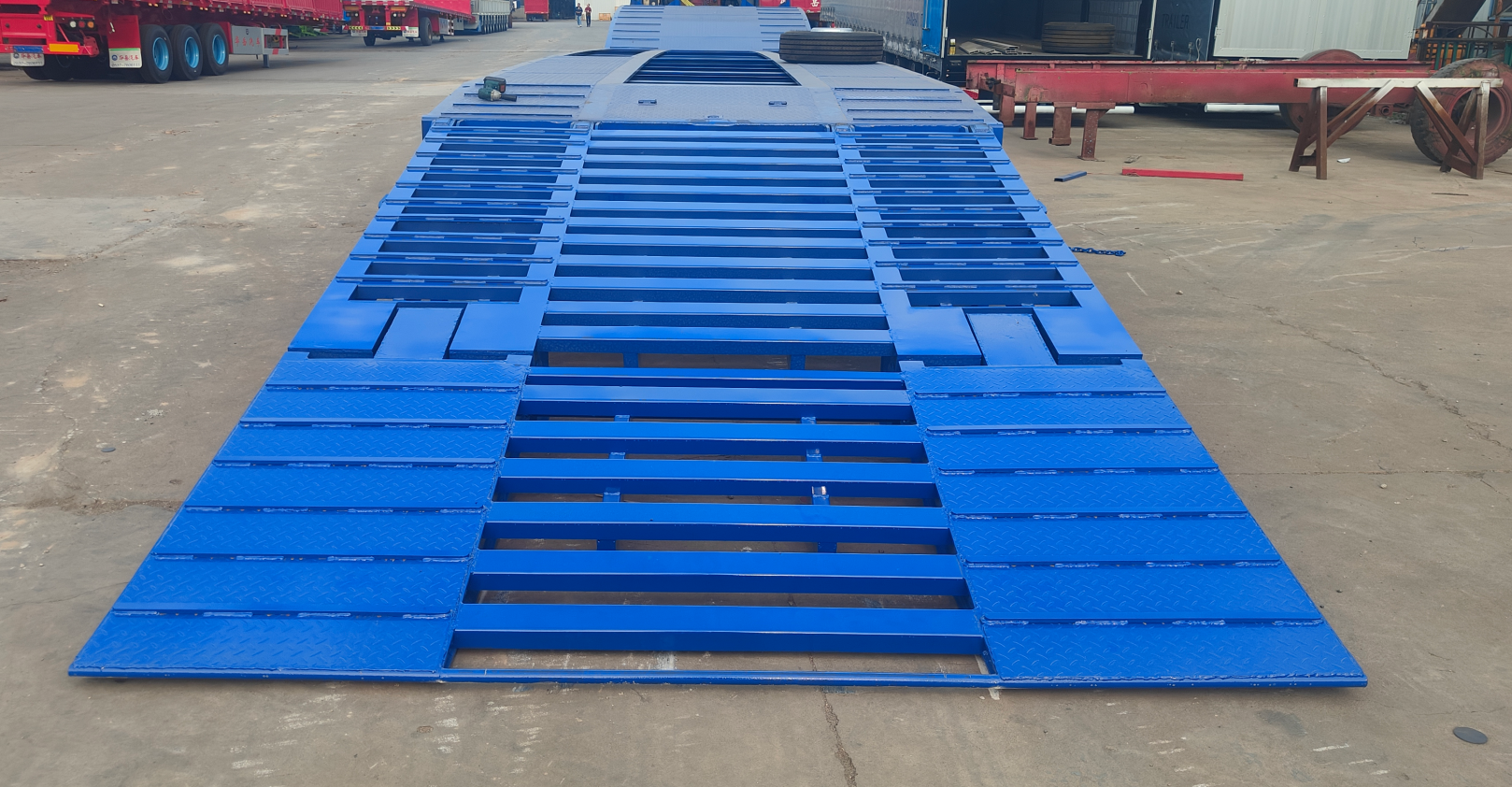

We refuse to trade low-quality components for fleeting price advantages. From the rear perspective, it is evident that HUAYUE's lowbed trailers utilize industrial-grade checkered anti-slip plates and ultra-high-yield structural steel to forge our hydraulic ramp systems, complete with densely welded anti-slip steel bars. This ensures zero deformation and zero slipping under the high-frequency crushing weight of massive tracks. We provide global fleets with a genuinely maintenance-free, high-uptime engineering mobile platform.

Customized Solutions for Any Scenario

Facing heavy machinery of varying dimensions and wheelbases, we do not push rigid standard parts. Instead, we provide Customized Solutions for Any Scenario:

• Optional double-folding hydraulic ramps ranging from 4.2 meters to 5 meters in deployment length.

• Customized hydraulic lateral shifting function, allowing the ramps to automatically slide left or right to match the specific track width of different machinery.

• Hybrid decking combining 50mm solid hardwood buffering with steel plates to withstand the rigid impact of crawler tracks.

Frequently Asked Questions

Q: If the truck's hydraulic PTO (Power Take-Off) breaks down, can the rear hydraulic ramps on the trailer still function?

A: HUAYUE offers an Independent Power Pack option for fleets. The front of the trailer is equipped with a small diesel engine driving its own hydraulic pump. Even if the prime mover loses power or leaves the site entirely, the operator can still independently deploy and retract the rear ramps.

Q: Will the hydraulic cylinders experience lagging or freezing during winter in extreme cold mining areas?

A: All our hydraulic cylinders utilize premium imported seals designed for extreme low temperatures. They can also be filled with specialized anti-freeze hydraulic oil tailored for arctic regions, ensuring stable and powerful thrust for the heavy double ramps even in sub-zero environments.

--------------------------------------------------
