Prevent Excavator Rollover Accidents: Rear Ramps vs. RGN Loading Solutions Compared

In heavy-haul logistics, 100% of cargo damage and rollover accidents occur during the loading and unloading phase, not in transit. When facing crawler excavators, heavy road rollers, or high-tonnage forklifts, chassis design is not merely a test of load capacity—it is a battle against gravity and friction. As highlighted in our comprehensive guide on [How to Choose a 60-100T Heavy-Duty Lowbed Trailer? Anti-Sagging & Loading Safety Guide], while a high-tensile steel main beam forms the foundation of load-bearing, the design of the loading corridor dictates the ultimate safety of your assets. Currently, two distinct loading pathways dominate the industry: traditional "Rear Ramps Loading" and the top-tier "Front RGN (Removable Gooseneck) Loading."

Dynamic Testing: The Capacity and Anti-Slip Limits of Rear Hydraulic Ramps

Video Analysis: The footage showcases a heavy-duty forklift, fully loaded with massive stone blocks, driving onto the HUAYUE main deck via the rear double-folding hydraulic ramps. The video clearly demonstrates that under immense dynamic pressure, the high-strength checkered steel plates and hydraulic support legs ensure absolute zero slipping and zero chassis displacement during the climb.

Traditional Rear Loading Risks and Solutions

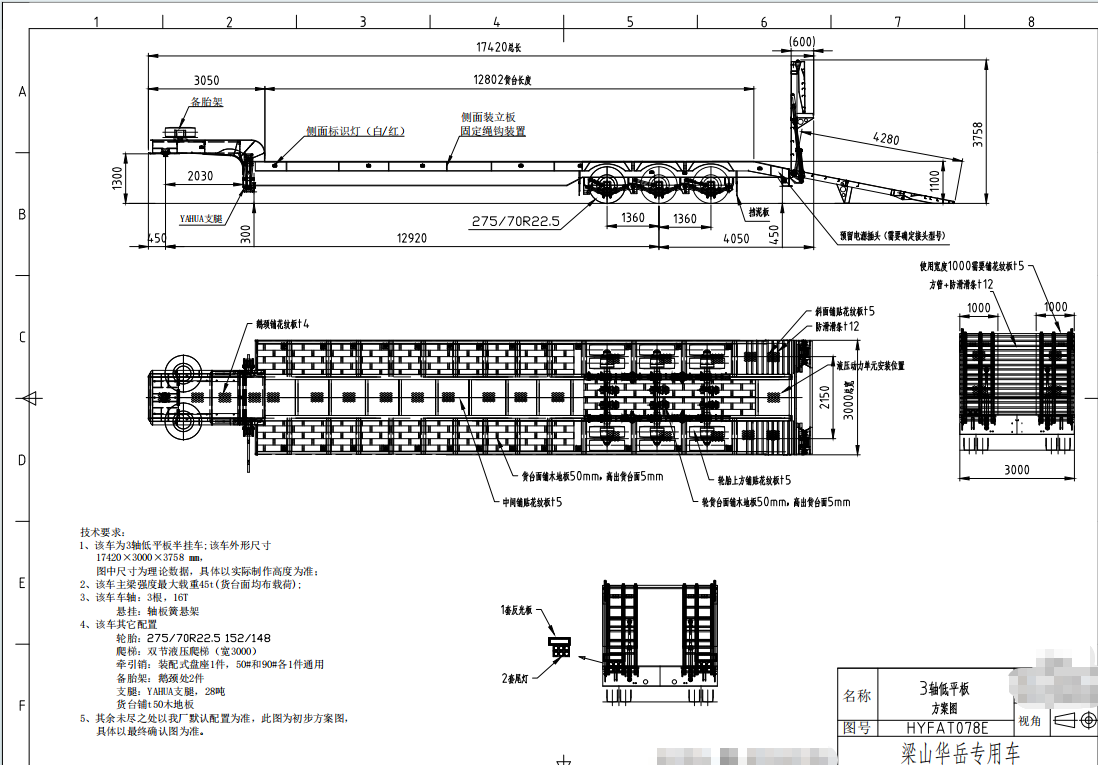

The core challenge of rear-ramp loading lies in the "climbing angle." From the classic HUAYUE 3-axle heavy-duty blueprint above, we can observe the optimal engineering balance:

• Geometry: The pure working deck height is compressed to 1,150mm, while the rear is equipped with a massive 4,200mm double-folding hydraulic ramp.

• Risk Mitigation: This design extends the runway, strictly controlling the climbing angle to a safe margin of approximately 15°. If inferior short ramps are used, causing the angle to exceed 20°, heavy tracked equipment can experience a violent chassis slam or even a fatal backward rollover when crossing the apex.

• Application: This 3-axle chassis with 4.2m hydraulic ramps, boasting a robust rigidity of "50-ton capacity on a minimum 5-meter contact surface," is highly suitable for conventional wheeled machinery and medium-tonnage crawler equipment.

The Ultimate Solution: "Zero-Angle" Loading of the Hydraulic Removable Gooseneck (RGN)

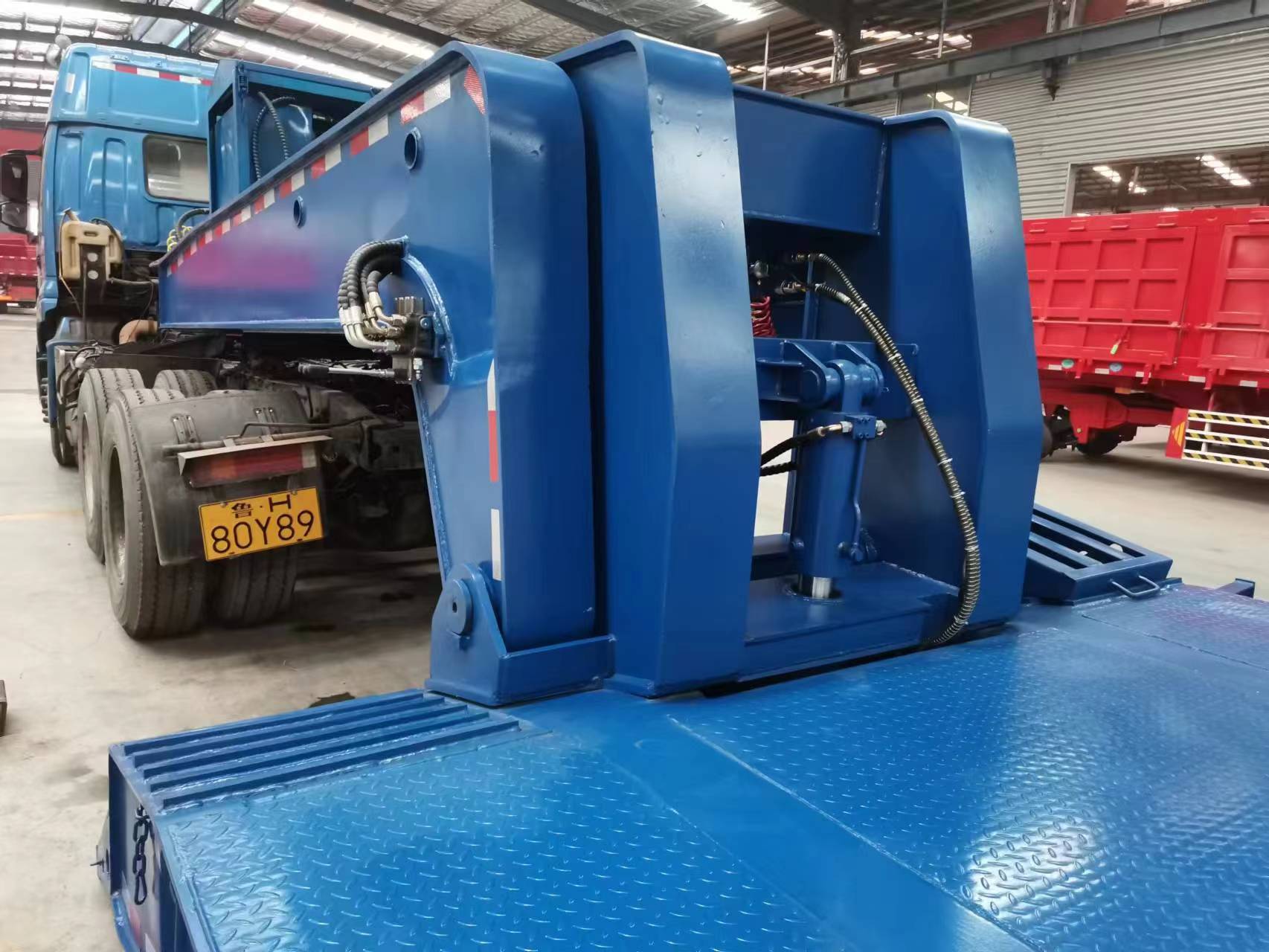

Video Analysis: This video fully demonstrates the "zero-angle" loading process of the HUAYUE RGN trailer. The operator smoothly detaches the front gooseneck using the independent hydraulic system. Once the prime mover drives away, the front loading corridor is completely open, allowing tracked equipment to drive straight on without climbing steep slopes.

When confronted with ultra-heavy, oversized crawler excavators with extremely high centers of gravity, the RGN demonstrates absolute supremacy.

• Mechanism: It entirely eliminates the concept of "climbing." By hydraulically detaching the front gooseneck from the main deck, the front of the trailer deck rests flat on the ground.

• Absolute Safety: Tracked equipment simply drives straight on from the front at a near 0° to 2° micro-incline, directly onto a deck with a ground clearance of merely 300mm-500mm. This completely eradicates sliding and bottoming out, achieving 100% fail-safe loading.

Hybrid Suspension System: Chassis Innovation Engineering

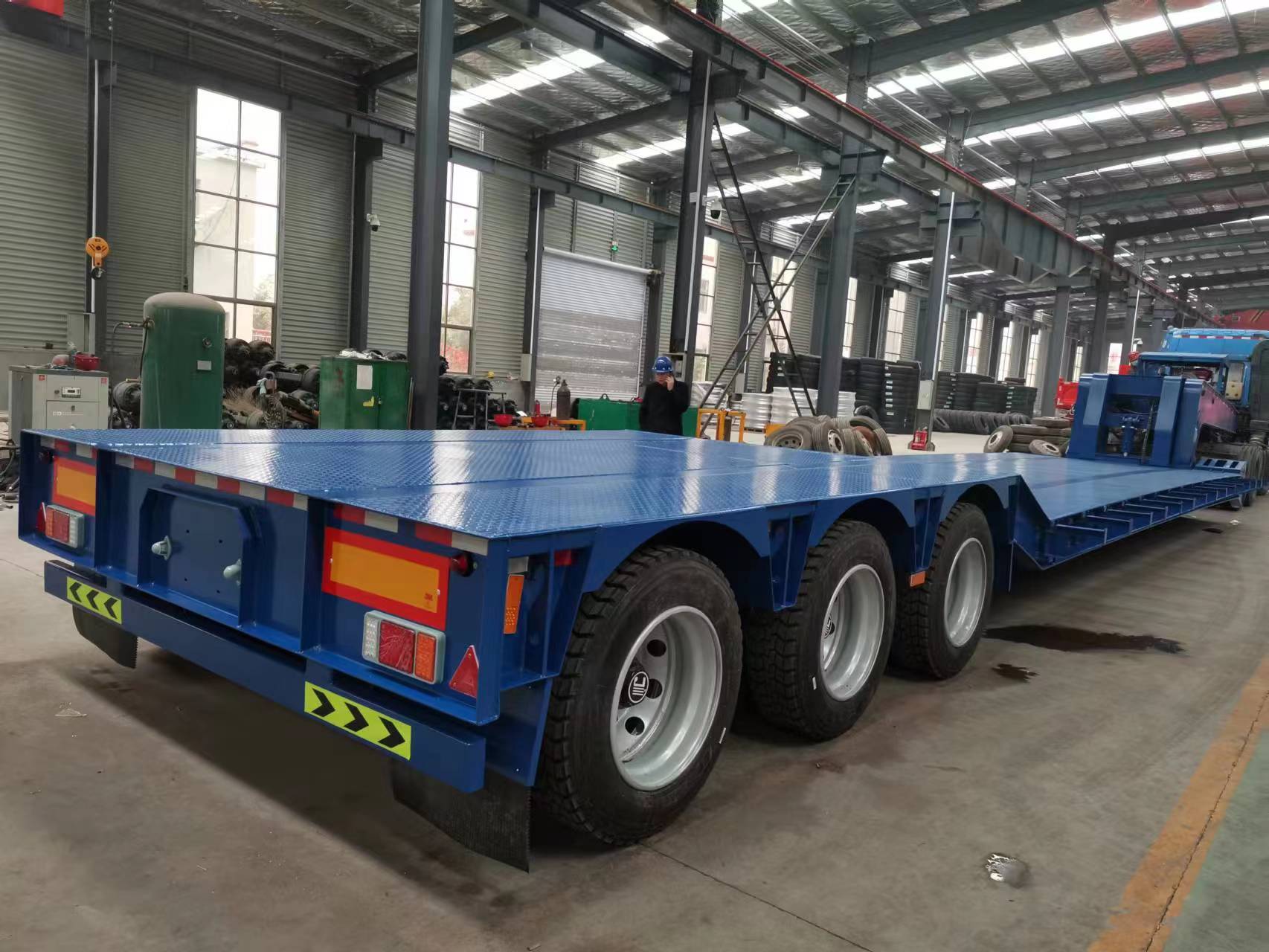

Beyond the loading corridors, HUAYUE has integrated an exceptionally rare Hybrid Suspension Configuration into the running gear, perfectly merging highway efficiency with mining-grade durability:

• Heavy-Duty Backbone: The 1st and 2nd axles utilize 13-ton axles paired with indestructible mechanical leaf spring suspensions, providing unbreakable support for the 50-ton concentrated payload.

• Flexible Resistance Reduction: The 3rd rear axle features a breakthrough Air Suspension with Lift Function. During unladen return trips, hoisting the final axle off the ground significantly reduces tire wear and effectively lowers fuel consumption.

HUAYUE's Advantages

Whether it is the 4.2-meter anti-slip hydraulic ramps validated by dynamic heavy forklift testing, or the RGN detachment tests that completely eliminate climbing risks, we use real engineering data and rigorous factory inspections to defend the transport safety of your high-value assets.

Customized Solutions for Any Scenario

We provide comprehensive customized solutions tailored for any scenario to cover all loading logic requirements:

• For standard construction fleets: Anti-slip hydraulic ramp combinations ranging from 4.2m to 5m in folding length.

• For ultra-heavy excavator users: Single to multi-cylinder hydraulically driven rapid-detach gooseneck systems.

• For diverse terrains: Flexible combinations of mechanical leaf springs, air lift, or full hydraulic suspension matrices.

Frequently Asked Questions

Q: My fleet primarily transports 30-40 ton medium excavators. Is it necessary to invest in an expensive RGN trailer?

 A: Not necessarily. For tracked equipment under 50 tons, opting for HUAYUE's standard 4.2-meter long-stroke double-folding hydraulic ramps, combined with a 50mm hardwood anti-slip deck, effectively keeps the climbing angle within a safe threshold. This is a highly cost-effective and secure configuration. RGNs are more suitable for ultra-large machinery over 60 tons that face strict highway height restrictions.

Q: Where does the independent RGN gooseneck get its power for lifting? Is it reliant on the truck head?

A: HUAYUE offers an Independent Power Pack customization option for RGN trailers. This means the trailer is equipped with its own small diesel engine to drive the hydraulic pump. Even if the prime mover completely leaves the site, the operator can autonomously complete the lifting and alignment of the gooseneck using a wireless remote control, entirely independent of the truck's PTO (Power Take-Off).

--------------------------------------------------
