Heavy-Duty Lowbed Semi-Trailer: The Heavy-Load Backbone and Automated Loading Evolution for High-Frequency Transport

The Industry Challenge: "Metal Fatigue" and "Manual Loading Injuries" in High-Frequency Transit

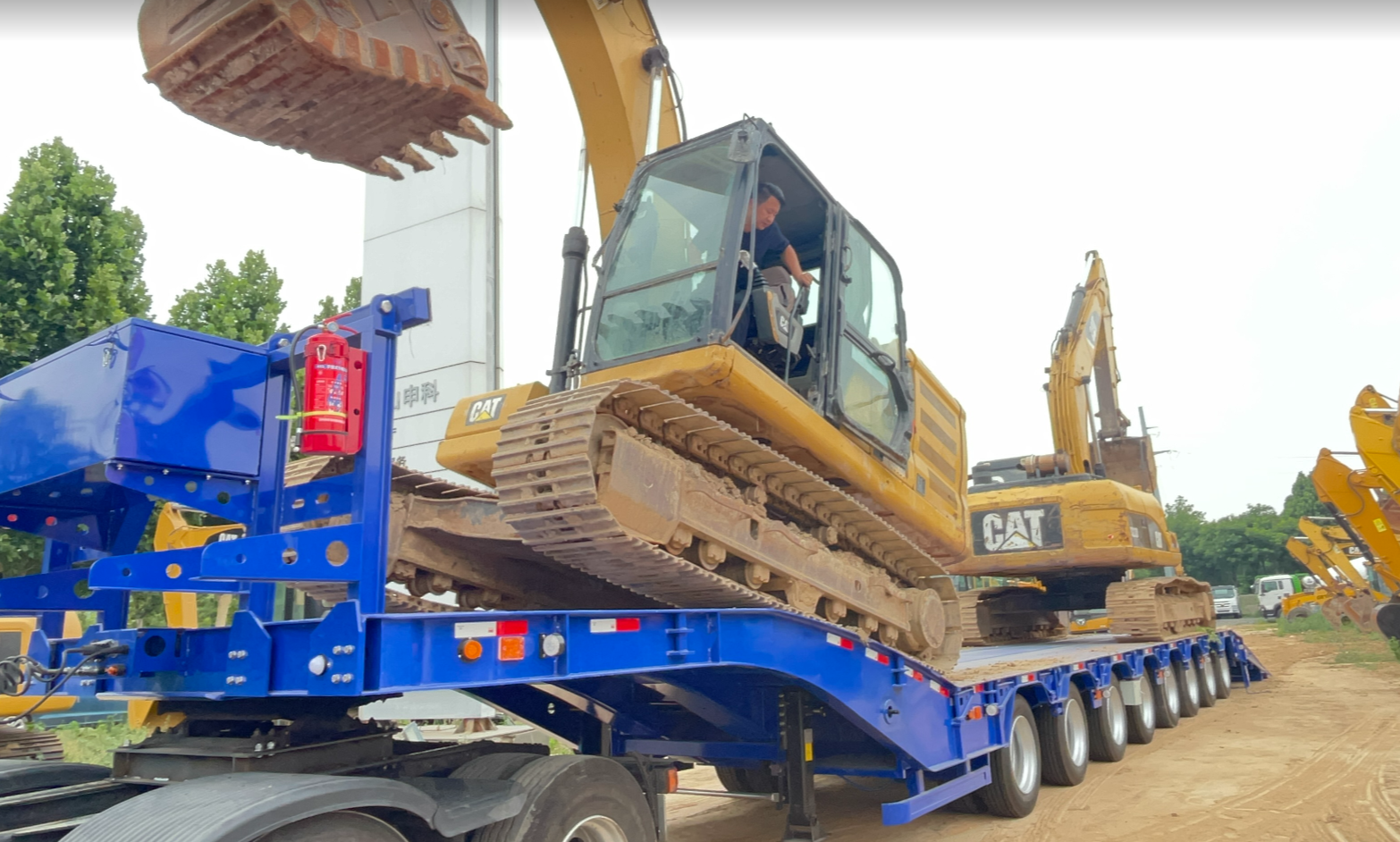

Not all logistics tasks involve moving hundred-ton behemoths. For the vast majority of engineering logistics fleets, the core daily business is rapidly and repeatedly shuttling thirty to fifty-ton wheel loaders, road rollers, medium excavators, and pavers between construction sites. This high-frequency, short-distance transit places brutal durability demands on the Heavy-Duty Lowbed Semi-Trailer:

• The Vicious "Point Load" of Steel Tracks and Drums: The weight of a tracked machine is not distributed evenly across the trailer deck. It presses down like two heavy steel blades concentrating intense pressure on tiny contact patches along the side beams. Heavy road rollers concentrate their massive weight into a single linear strike. If a lowbed trailer has thin side rails or sparse cross-members, this localized high-stress loading will warp the deck plates, tear welds, and cause irreversible sagging of the main beams within months.

• The "Injury Hazard and Inefficiency" of Manual Ramps: Standard lowbed trailers are universally equipped with heavy, manually operated spring ramps at the rear. Loading multiple times a day forces drivers to constantly exert massive physical effort to lift these heavy steel frames, which are often coated in thick mud and grease. In rainy or snowy conditions, or when tension springs degrade, hoisting these ramps frequently leads to severe lower back injuries or crushed feet if the ramp slips. This dangerous and inefficient method is no longer acceptable for modern, safety-conscious fleets.

Structural Reinforcement: Extreme Steel Skeletons and Fully Automatic Hydraulic Ramps

To forge a truly "indestructible" universal transport trailer capable of surviving brutal job site conditions, HUAYUE drastically upgraded both the chassis skeleton and the loading ramp system:

High-Density Reinforced Cross-Members and Side Beams

In critical stress zones, we reject any compromises for lightweighting. To combat the concentrated point loads of heavy machinery, HUAYUE welds an extremely dense matrix of high-strength structural steel cross-members between the main beams and side rails. Functioning like dense rebar in a concrete foundation, this grid instantly disperses the massive, localized pressure of steel tracks evenly across the two colossal box-section main beams. Combined with a thickened diamond-tread floor plate, the cargo deck remains rock-solid and deformation-free, no matter how many times a fifty-ton road roller crushes it.

Fully Automatic Dual-Folding Hydraulic Ramps

To completely free the driver from manual labor, eliminate injury hazards, and massively boost turnaround efficiency, HUAYUE features advanced Rear-Mounted Fully Automatic Hydraulic Folding Ramps:

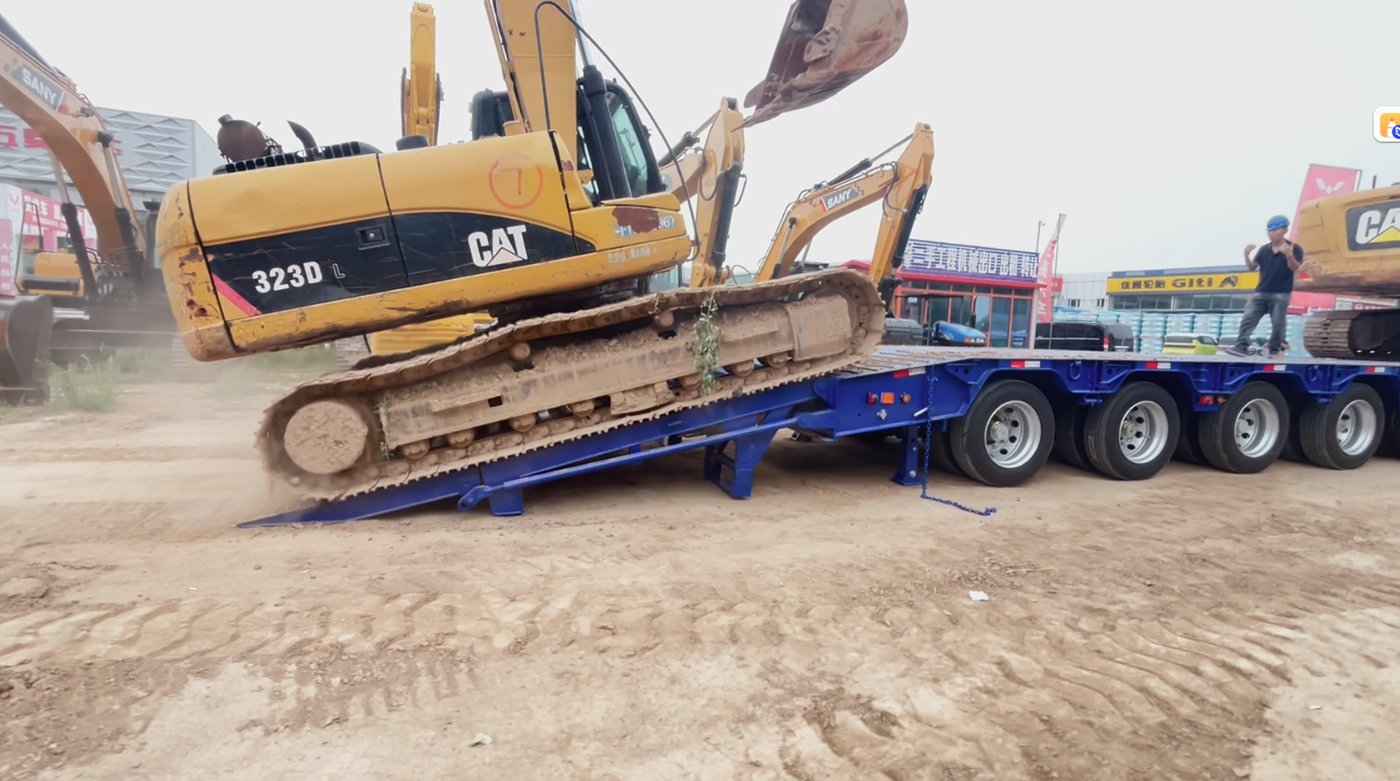

Powered by an electro-hydraulic station or the tractor's PTO, the driver stands safely away and presses a remote control. Heavy-duty dual-acting hydraulic cylinders smoothly and steadily unfold the massive rear ramps, lowering them to the ground. Because we utilize a long dual-folding geometric design, the fully extended ramp creates an incredibly gentle slope (typically well under 15 degrees). This not only makes climbing effortless for the machinery but eradicates the risk of tracks slipping and sliding backwards on steep inclines.

Suspension and Load Capacity: Ensuring Absolute Stability on Brutal Terrain

When a fully loaded trailer speeds across gravel mine roads or unpaved rural tracks, the suspension system dictates the trailer's lifespan.

• Heavy-Duty Multi-Leaf Mechanical Suspension: We standard-equip high-capacity, fatigue-resistant thickened leaf spring suspensions, paired with premium high-tonnage axles from leading brands like BPW or FUWA. Even fully loaded at fifty tons and subjected to violent impacts, the heavy-duty suspension absorbs the shock, preventing axle fractures.

• 3D Anti-Slip Wear-Resistant Decking: To prevent fatal forward sliding during emergency braking, we weld a 3D matrix of anti-slip round or square steel bars directly onto the thickened plates where the excavator tracks rest. This physical resistance grid aggressively bites into the steel tracks during critical moments, heavily safeguarding driving safety.

Technology Showdown: Hydraulic Folding Ramps vs. Manual Mechanical Spring Ramps

Frequently Asked Questions

Q: Can I operate the hydraulic ramps independently if the trailer is disconnected from the tractor?

A: Absolutely. To accommodate real-world site logistics, we offer an optional "Micro Electro-Hydraulic Station" installed directly inside the trailer chassis. By connecting it to a standard truck battery or an onboard accumulator, you can independently deploy and fold the massive ramps via remote control even when the tractor unit is miles away, ensuring your loading schedule is never delayed.

Q: If we aren't hauling machinery, can this specialized lowbed haul standard shipping containers or pipes? Is it cost-effective?

A: It is fully compatible with multi-purpose transport and is a massive ROI booster. While its primary mission is heavy machinery, we can pre-embed standardized "Container Twist Locks" into critical stress points of the flat deck during manufacturing based on your requirements. When there is no machinery to move, this chassis seamlessly doubles as a high-strength flatbed trailer to haul heavy 20-foot shipping containers, industrial steel coils, or large pipes. This multi-role capability drastically reduces empty runs and secures your return on investment.

Q: Is there any risk of the hydraulic ramps dropping unexpectedly during highway transit if pressure is lost?

A: Absolutely not. Safety is paramount. Our hydraulic cylinders are equipped with high-pressure bidirectional hydraulic locks. Furthermore, once the ramps are fully folded upright, heavy-duty physical mechanical locking hooks secure the ramps directly to the main beam. Even if a hydraulic hose is completely severed during transit, the mechanical locks guarantee the ramps will never fall, giving you total peace of mind with double redundancy.

--------------------------------------------------
