Rejecting the Seesaw Effect: How Double-Folding Hydraulic Ramps Compress Climbing Angles to the 15° Safety Threshold

Core Pain Point: The "Seesaw Effect" During Heavy Crawler Loading

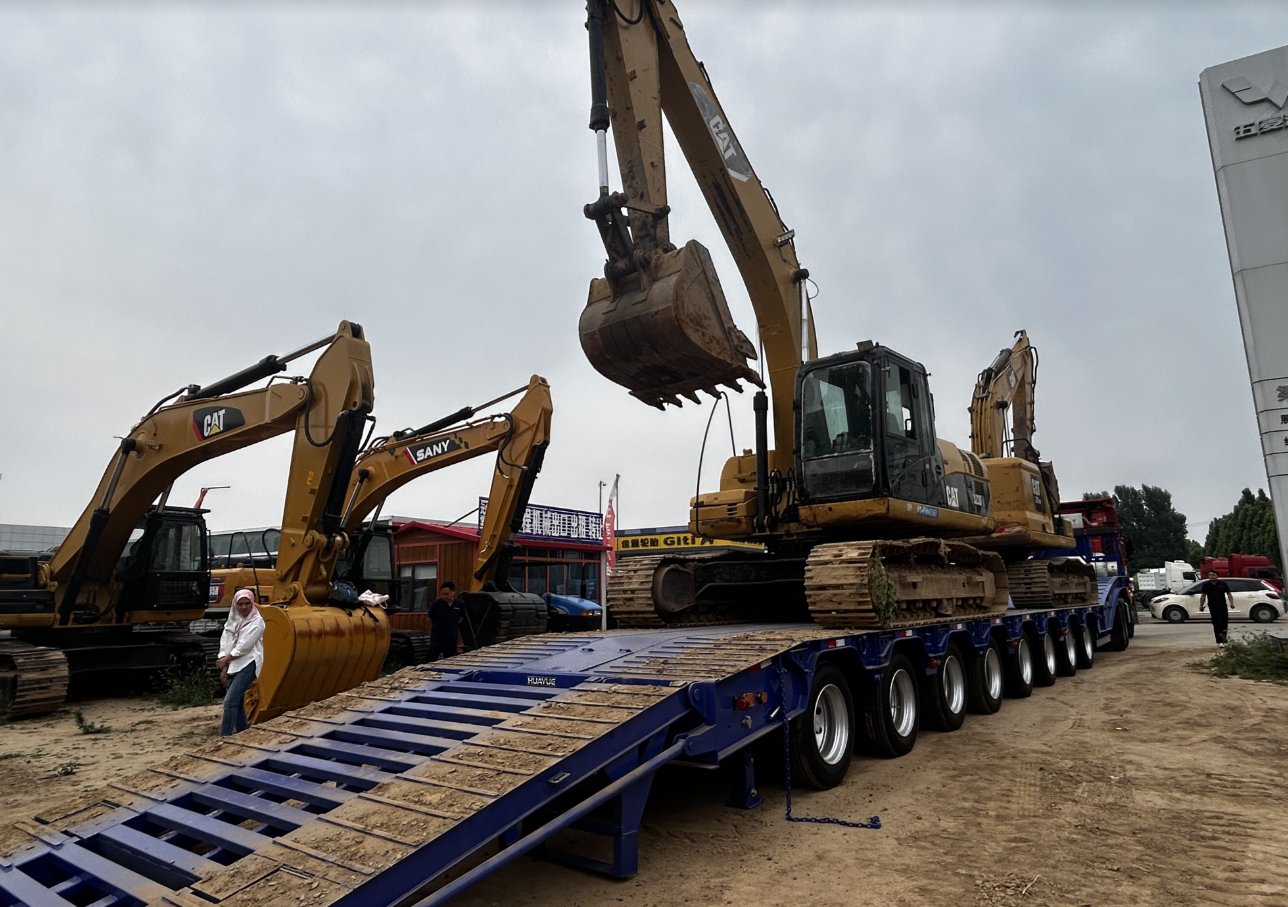

In mining areas or construction sites, the moment a crawler excavator or heavy drill rig climbs onto the deck of a lowbed trailer, it is highly susceptible to the fatal "Seesaw Effect." When the equipment's center of gravity crosses the hinge point between the ramp and the deck, and the climbing angle is too steep, the equipment instantly loses balance and tips backward, crashing to the ground. This not only leads to hundreds of thousands of dollars in machinery scrap but can also cause severe casualties.

There is only one core physical reason for this disaster: The length of a traditional single-piece ramp is limited, causing the climbing angle to frequently exceed the dangerous critical point of 20°.

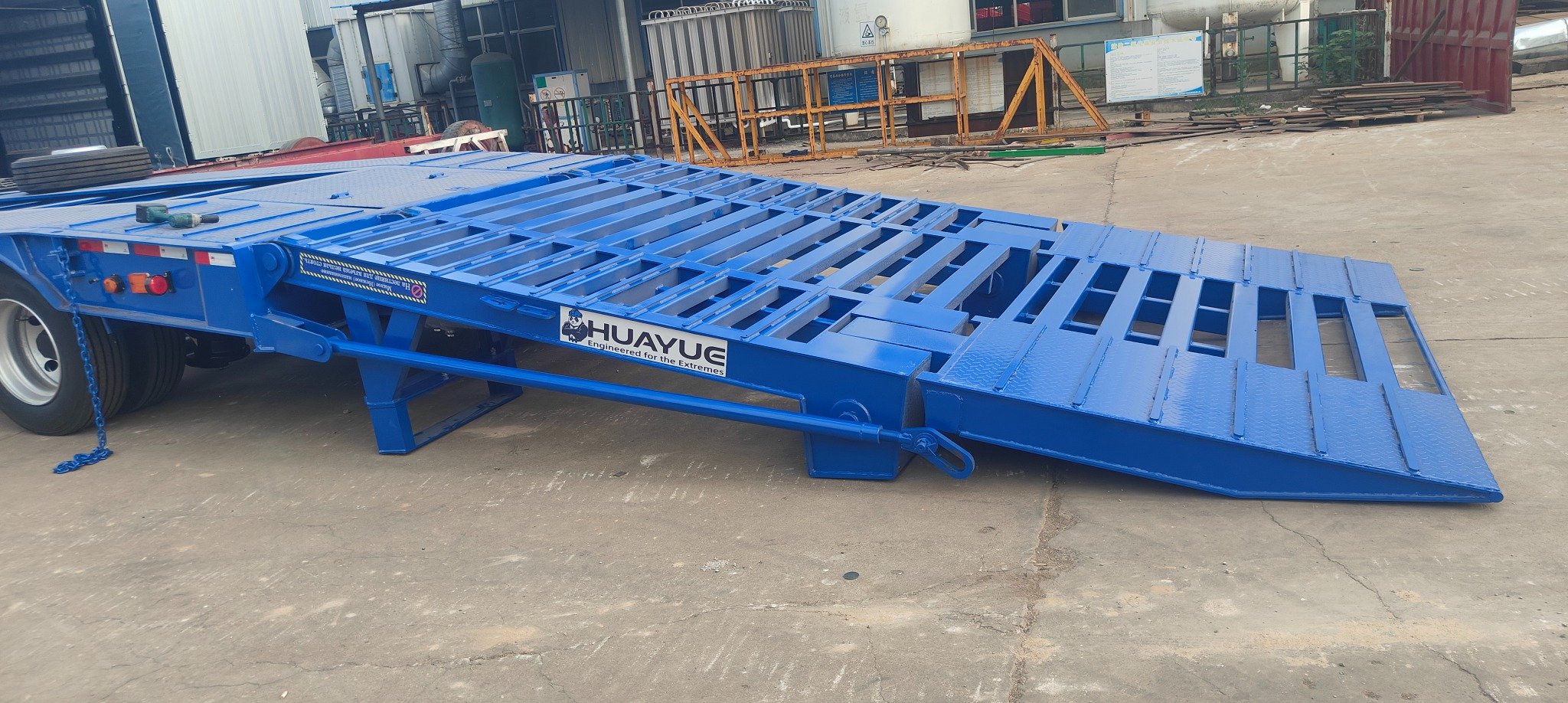

Geometric Dimensional Reduction: How Double-Folding Ramps Compress Angles by Extending the Hypotenuse

The only physical way to solve an overly steep angle is to extend the "hypotenuse" of the right-angled triangle. Because trailer rear ramps must be folded upright during transit, the length of a single-piece ramp is strictly limited by vehicle height regulations and cannot be made too long. This is exactly where Double-Folding Hydraulic Ramps play a decisive role:

• Physical Folding Design: Through a two-stage articulated structure, the double-folding ramp can extend the physical hypotenuse to 3 meters or even over 3.5 meters when deployed.

• 15° Safety Threshold: The extended hypotenuse directly alters the climbing geometry, forcibly compressing the formerly steep angle to between 11° and 15°. At this golden safety angle, the center of gravity of the crawler equipment always lands squarely within the geometric center of the crawler's ground contact area, completely eliminating the physical conditions for the "seesaw effect."

Power and Anti-Drop Safety Valves: The Hardcore Physical Defense of the Hydraulic System

Because double-folding ramps are extremely heavy (often exceeding hundreds of kilograms per side), relying purely on manpower or spring assistance poses immense operational risks. We use an independent Power Pack or the prime mover's PTO to drive the double-folding ramps. More importantly, at the base of every Lifting Cylinder, an Anti-drop Safety Valve is integrated. This means that even if a hydraulic line unexpectedly bursts while the ramp is folded upright, the hydraulic fluid inside the cylinder is instantly locked. The ramp will absolutely not free-fall and crush operators.

Loading Phase Stability: Anti-Tipping Support from Heavy-Duty Hydraulic Legs

Beyond controlling the climbing angle, when dozens of tons of heavy equipment first step onto the ramps, the rear of the trailer experiences immense downward pressure, which can cause the front of the truck to lift and deform the beams. To counter this, our safe loading system is equipped with interlocking Heavy-duty Mechanical/Hydraulic Support Legs. During loading operations, these legs deploy vertically to the ground, transferring the gravity of the heavy machinery directly to the earth, preventing damage to the trailer's suspension system from instantaneous overloading.

Customized Solutions for Any Scenario

Different equipment has varying chassis ground clearances and track lengths. We provide Customized Solutions for Any Scenario:

• For special machinery with ultra-low chassis (like pavers and rollers), we can customize elongated double-folding ramps to further compress the angle to an extreme 9°.

• For wide-body excavators, we customize Lateral Shifting functions, allowing the ramps to automatically slide outwards along the rear of the trailer according to the equipment's track width, perfectly matching non-standard crawler dimensions.

• For muddy conditions, we customize high-density anti-slip steel bars on the ramp's load-bearing surface, providing the extreme physical bite force needed for crawler climbing.

HUAYUE's Advantages

Many manufacturers view double-folding ramps as an optional "gimmick," but we view them as the last line of physical defense protecting lives and high-value assets. HUAYUE's Advantages lie in our design logic, which always centers on "solving on-site safety pain points." Through rigorous geometric calculations and heavy-duty hydraulic engineering, we ensure that every heavy-load loading and unloading operation is completed within absolutely controllable physical boundaries.

Frequently Asked Questions

Q: Are the maintenance costs of double-folding hydraulic ramps much higher than traditional spring-assisted ramps?

A: Not from a full-lifecycle perspective. While initial procurement costs are slightly higher, hydraulic ramps eliminate the hidden danger of high-tension springs frequently suffering fatigue fracture and needing replacement. Our hydraulic systems use internationally standardized fittings. As long as you regularly check the hydraulic fluid levels and clean the cylinder wiper seals, their lifespan can exceed 10 years, saving you a massive amount of manual operation time.

Q: Will the wind resistance at the rear of the trailer increase after folding up the double ramps?

A: No. On the contrary, because the double-folding ramps use an inward-folding design, their folded height is much lower than that of a traditional long single-piece ramp. This not only avoids adding extra wind resistance but also effectively prevents physical collisions when passing through height-restricted bridges or culverts.

--------------------------------------------------
